SCP7QT78HPL1QLS06E

Obsolete

Samsung Semiconductor, Inc.

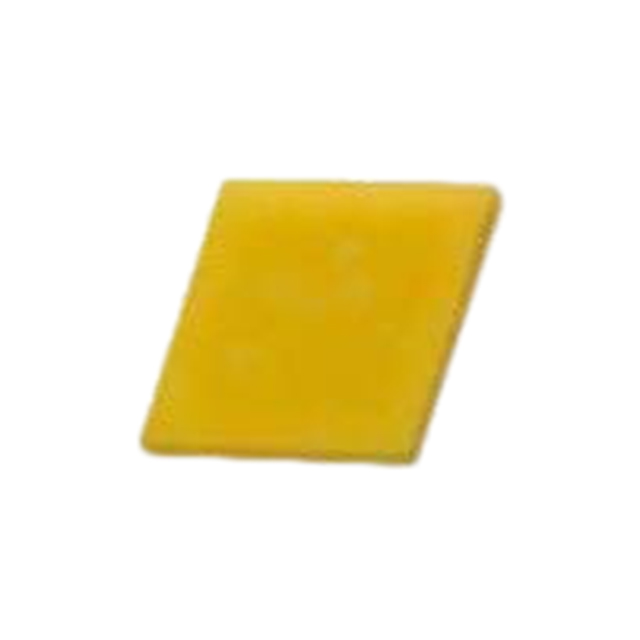

LED LM101A COOL WHITE 5700K SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED LM101A COOL WHITE 5700K SMD

Technical Specifications

Parameters and characteristics for this part

Part	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Supplier Device Package	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Current - Test	Mounting Type	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Package / Case	Height - Seated (Max) [Max] [z]
Samsung Semiconductor, Inc. SCP7QT78HEL1QUS06E	35 lm	70	192 lm/W	1.7 mm	1.7 mm	0.067 in	0.067 in	0606 1616 Metric	SMD	5700 K	350 mA	2.8 V	120 °	Cool White	0.45 mm	0.018 "	65 mA	Surface Mount
Samsung Semiconductor, Inc. SCP7QT78HPL1QLS06E		70	149 lm/W	1.18 mm	1.18 mm	0.046 in	0.046 in	1313 Metric	SMD	5700 K		2.9 V	150 °	Cool White		0.017 in	150 mA	Surface Mount	71 lm	65 lm	59 lm	0505	0.42 mm
Samsung Semiconductor, Inc. SCP7QT78HPL1QUS06E		70	149 lm/W	1.15 mm	1.15 mm	0.045 "	0.045 in	1313 Metric	SMD	5700 K		2.9 V	150 °	Cool White	0.45 mm	0.018 "	150 mA	Surface Mount	71 lm	65 lm	59 lm	0505

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting LM101A White, Cool 5700K 5-Step MacAdam Ellipse 2.9V 150mA 150° 0505 (1313 Metric)

Technical documentation and resources

No documents available
