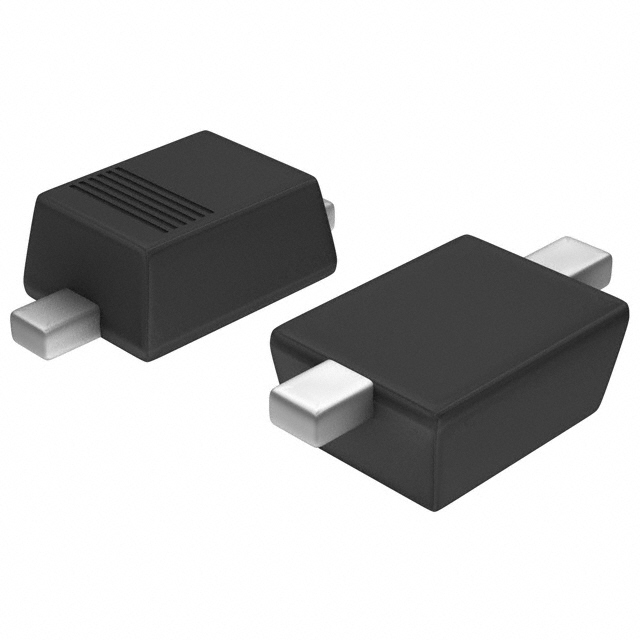

1N914BWS

Active

ON Semiconductor

SMALL SIGNAL DIODE, SINGLE, 75 V, 200 MA, 1 V, 4 NS, 4 A

Search across all available documentation for this part.

Active

ON Semiconductor

SMALL SIGNAL DIODE, SINGLE, 75 V, 200 MA, 1 V, 4 NS, 4 A

Technical Specifications

Parameters and characteristics for this part

Specification	1N914BWS

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	SOD-323F, SC-90
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Small Signal Diode

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Speed	Speed	Capacitance @ Vr, F	Operating Temperature - Junction
ON Semiconductor 1N914B_T50R	1 V	DO-35	Standard	5 µA	Axial DO-204AH DO-35	200 mA	100 V	Through Hole	175 ░C	-55 C	4 ns	Any Speed	200 mA	4 pF
ON Semiconductor 1N914BTR	1 V	DO-35	Standard	5 µA	Axial DO-204AH DO-35	200 mA	100 V	Through Hole	175 ░C	-65 C	4 ns	Any Speed	200 mA	4 pF
ON Semiconductor 1N914BWS	1 V	SOD-323F	Standard	5 µA	SC-90 SOD-323F	150 mA	75 V	Surface Mount			4 ns	Any Speed	200 mA	4 pF	150 °C
ON Semiconductor 1N914B	1 V	DO-35	Standard	5 µA	Axial DO-204AH DO-35	200 mA	100 V	Through Hole	175 ░C	-55 C	4 ns	Any Speed	200 mA	4 pF
ON Semiconductor 1N914BWT	1 V	SOD-523F	Standard	5 µA	SC-79 SOD-523F	200 mA	75 V	Surface Mount	150 °C	-55 °C	4 ns	Any Speed	200 mA	4 pF
ON Semiconductor 1N914B	1 V	DO-35	Standard	5 µA	Axial DO-204AH DO-35	200 mA	100 V	Through Hole	175 ░C	-65 C	4 ns	Any Speed	200 mA	4 pF
