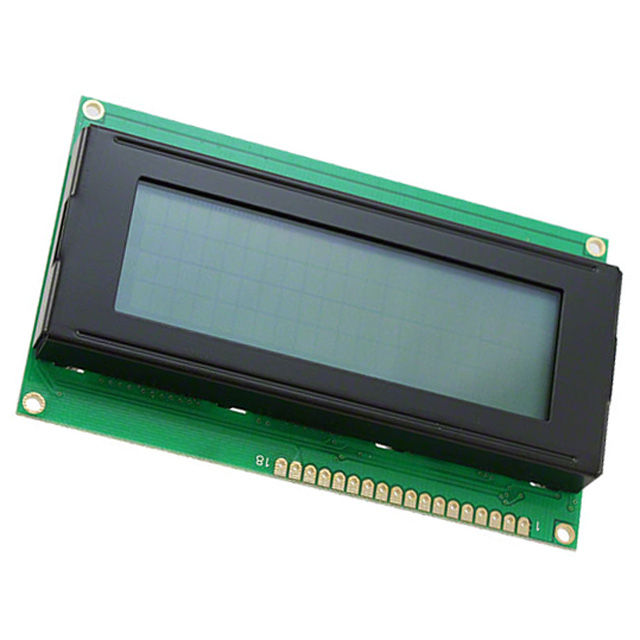

LCR-U02004DSF-WH
ActiveLumex Opto/Components Inc.
LCD MOD 80DIG 20X4 TRANSFLCT WHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCR-U02004DSF-WH
ActiveLumex Opto/Components Inc.
LCD MOD 80DIG 20X4 TRANSFLCT WHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCR-U02004DSF-WH |
|---|---|
| Background Color | Gray |
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 80 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 11.6 mm |
| Text Color | Black |
| Viewing Area [x] | 76.3 mm |
| Viewing Area [y] | 25 mm |
| Voltage - Supply [Max] | 5.3 V |
| Voltage - Supply [Min] | 4.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.90 | |
| 10 | $ 25.76 | |||
| 140 | $ 22.50 | |||
Description
General part information
LCR-U02004 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 98.00mm x 60.00mm x 11.60mm
