430274-501
Laird Thermal Systems, Inc.
PELTIER OT12,62,F3,1211,11,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430274-501
Laird Thermal Systems, Inc.
PELTIER OT12,62,F3,1211,11,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430274-501 |
|---|---|
| Current - Max [Max] | 1.2 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.69 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 5 W |
| Resistance | 5.39 Ohms |
| Size / Dimension [x] | 13.2 mm |
| Size / Dimension [y] | 12.2 mm |
| Voltage - Max [Max] | 7.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.38 | |
| 5 | $ 77.56 | |||
| 10 | $ 75.16 | |||
| 25 | $ 72.75 | |||
| 50 | $ 70.82 | |||
| 100 | $ 68.89 | |||
Description
General part information
430274 Series

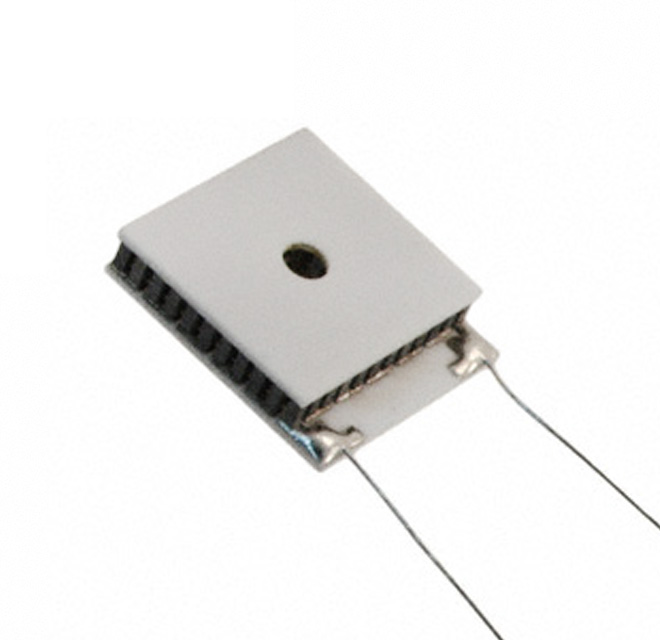

Peltier Module 5.0W @ 25°C 1.2 A 80°C
Documents
Technical documentation and resources
