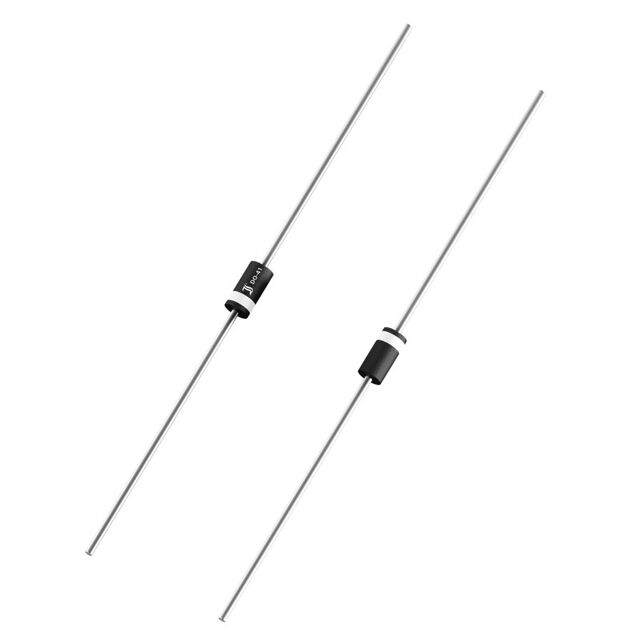

1N4005GP-AQ-CT

Active

Diotec Semiconductor

DIODE STANDARD 600V 1A DO204AC

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE STANDARD 600V 1A DO204AC

Technical Specifications

Parameters and characteristics for this part

Specification	1N4005GP-AQ-CT

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	Axial, DO-41, DO-204AC
Reverse Recovery Time (trr)	1500 ns
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-204AC (DO-41)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Package / Case	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If
Diotec Semiconductor 1N4005GP-AQ-CT	Axial DO-204AC DO-41	DO-204AC (DO-41)	Through Hole	5 µA	1500 ns	600 V	Standard	Standard Recovery >500ns	200 mA	-50 °C	175 ░C	1 A	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 1A Through Hole DO-204AC (DO-41)
