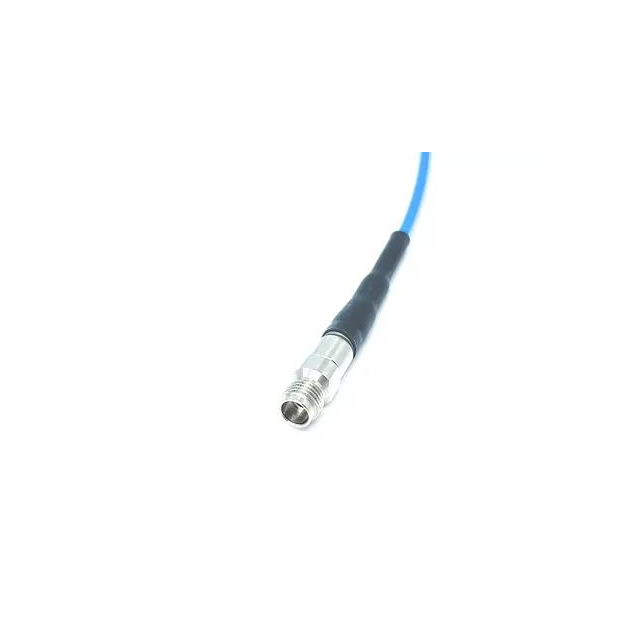

W205-2F12F1-36INCH
ActiveWITHWAVE CO LTD
COAX CBL 2.4MM TO 2.4MM 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W205-2F12F1-36INCH
ActiveWITHWAVE CO LTD
COAX CBL 2.4MM TO 2.4MM 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W205-2F12F1-36INCH |
|---|---|
| 1st Connector | 2.4mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 2.4 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 2.40mm OD Coaxial Cable |
| Color | Blue |
| Frequency - Max [Max] | 50 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.4 mm |
| Style [Min] | 2.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 247.10 | |
| 10 | $ 234.70 | |||
| 25 | $ 222.40 | |||
| 50 | $ 210.00 | |||
Description
General part information
W205-2F12F1 Series
Cable Assembly Coaxial 2.4mm to 2.4mm 2.40mm OD Coaxial Cable 36.00" (914.40mm)
