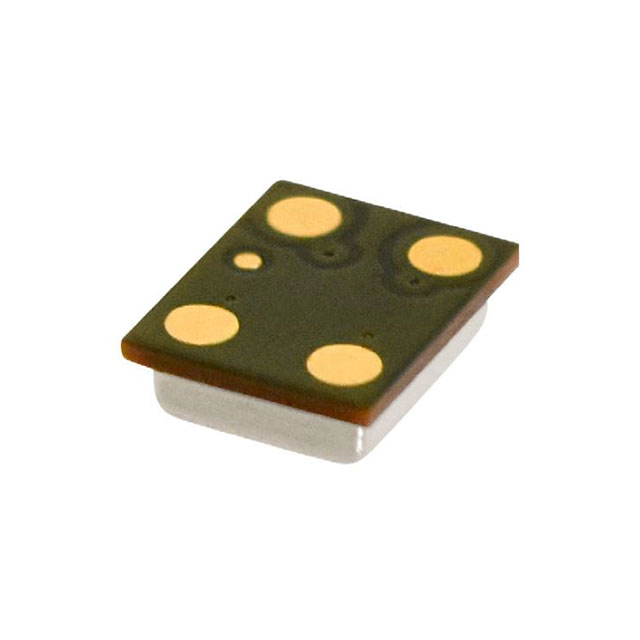

CMM-3729AT-42316-TR
ActiveCUI Devices
MIC MEMS ANALOG OMNI -42DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMM-3729AT-42316-TR
ActiveCUI Devices
MIC MEMS ANALOG OMNI -42DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMM-3729AT-42316-TR |
|---|---|
| Current - Supply | 160 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 57 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.76 mm |
| Size / Dimension [y] | 2.95 mm |
| Size / Dimension [y] | 0.116 " |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.34 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.79 | |||
| Digi-Reel® | 1 | $ 1.34 | ||
| 10 | $ 1.12 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.79 | |||
| Tape & Reel (TR) | 1000 | $ 0.74 | ||
| 5000 | $ 0.72 | |||
Description
General part information
CMM-3729 Series
100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-42dB ±3dB @ 94dB SPL) Solder Pads
