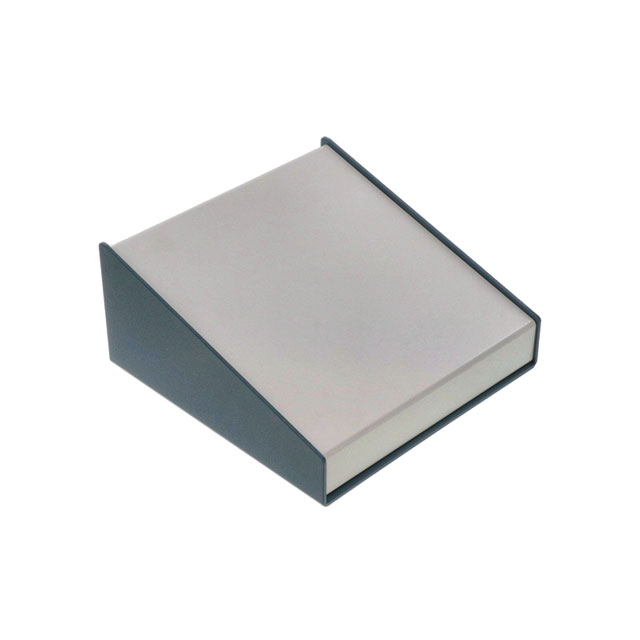

UNC 2 3/4-6-6-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 6"L X 6"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 6"L X 6"W

Technical Specifications

Parameters and characteristics for this part

Specification	UNC 2 3/4-6-6-BLUE/WHITE

Area (L x W)	232 cm²
Area (L x W)	36 in²
Color	Blue, White
Container Type	Cabinet
Design	Slanted Top
Features	Separate Panel or Cover Thickness
Height [z]	69.85 mm
Height [z]	2.75 in
Material	Metal, Aluminum
Size / Dimension [x]	6 in
Size / Dimension [x]	152.4 mm
Size / Dimension [y]	152.4 mm
Size / Dimension [y]	6 "
Thickness	0.09 in
Thickness	2.29 mm

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Design	Material	Color	Thickness	Thickness	Features	Container Type	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Area (L x W)	Size / Dimension [y]
LMB Heeger Inc. UNC 2 3/4-6-6 PLAIN	152.4 mm	6 in	152.4 mm	6 "	232 cm˛	36 in˛	Slanted Top	Aluminum Metal	Unpainted	0.09 in	2.29 mm	Separate Panel or Cover Thickness	Cabinet	69.85 mm	2.75 in
LMB Heeger Inc. UNC 2 3/4-6-6-BLUE/WHITE	152.4 mm	6 in	152.4 mm	6 "			Slanted Top	Aluminum Metal	Blue White	0.09 in	2.29 mm	Separate Panel or Cover Thickness	Cabinet	69.85 mm	2.75 in	232 cm²	36 in²
LMB Heeger Inc. UNC 2-4-6 PLAIN		6 in	152.4 mm	4 "			Slanted Top	Aluminum Metal	Unpainted	0.09 in	2.29 mm	Separate Panel or Cover Thickness	Cabinet	50.8 mm	2 in	155 cm˛		24 in˛	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cabinet Metal, Aluminum Blue, White Slanted Top 6.000" L x 6.000" W (152.40mm x 152.40mm) X 2.750" (69.85mm)
