ABV1610613

Active

Panasonic Electric Works

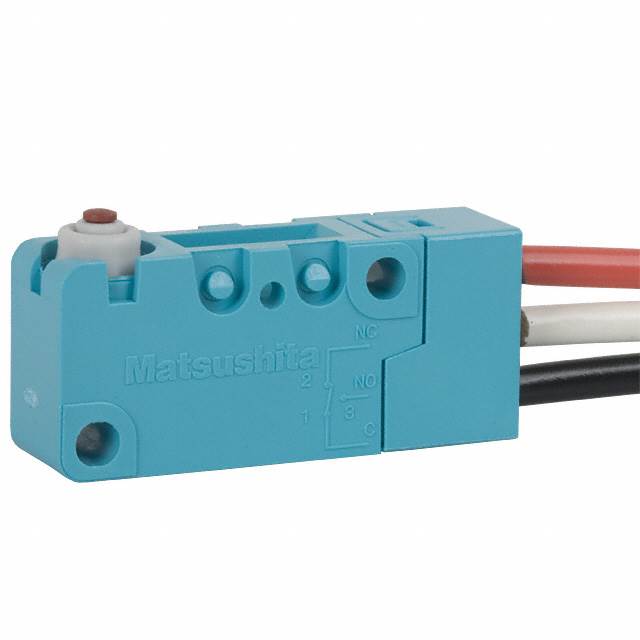

SWITCH SNAP ACTION SPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABV1610613

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABV1610613

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	3 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	100000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	300 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	0.063 in
Pretravel	1.6 mm
Release Force	60 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	250 V

ABV161 Series

Part	Mounting Type	Circuit	Current Rating (Amps)	Mechanical Life	Differential Travel	Differential Travel	Actuator Type	Switch Function	Overtravel	Overtravel	Electrical Life	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Ingress Protection	Termination Style	Operating Force	Operating Position	Operating Position	Pretravel	Pretravel	Pretravel
Panasonic Electric Works ABV161261	Chassis Mount	SPDT	3 A	5000000 Cycles	0.047 in	1.2 mm	Lever Straight	On-Mom	1.2 mm	0.047 "	100000 Cycles	20 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	180 gf	15.3 mm	0.602 "	3.2 mm	0.125 in
Panasonic Electric Works ABV1610613	Chassis Mount	SPDT	3 A	5000000 Cycles	0.016 "	0.4 mm	Round (Pin Plunger)	On-Mom	0.76 mm	0.03 in	100000 Cycles	60 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	300 gf	14.7 mm	0.579 in		1.6 mm	0.063 in
Panasonic Electric Works ABV1610403	Chassis Mount	SPDT	3 A	5000000 Cycles	0.016 "	0.4 mm	Round (Pin Plunger)	On-Mom	0.76 mm	0.03 in	100000 Cycles	25 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	100 gf	14.7 mm	0.579 in		1.6 mm	0.063 in
Panasonic Electric Works ABV1614619	Chassis Mount	SPDT	3 A	5000000 Cycles	0.047 in	1.2 mm	Lever Simulated Roller	On-Mom	1.2 mm	0.047 "	100000 Cycles	20 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	180 gf	18.5 mm	0.73 in	3.2 mm	0.125 in
Panasonic Electric Works ABV1615619	Chassis Mount	SPDT	3 A	5000000 Cycles	0.02 in	0.5 mm	Lever Roller	On-Mom	0.76 mm	0.03 in	100000 Cycles	60 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	320 gf	20.7 mm	0.815 in		1.6 mm	0.063 in
Panasonic Electric Works ABV1612503	Chassis Mount	SPDT	5 A	5000000 Cycles	0.047 in	1.2 mm	Lever Straight	On-Mom	1.2 mm	0.047 "	100000 Cycles	13 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	120 gf	15.3 mm	0.602 "	3.2 mm	0.125 in
Panasonic Electric Works ABV161651	Chassis Mount	SPDT	3 A	5000000 Cycles	0.047 in	1.2 mm	Lever Roller	On-Mom	1.2 mm	0.047 "	100000 Cycles	13 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	120 gf	20.7 mm	0.815 in	3.2 mm	0.125 in
Panasonic Electric Works ABV161661	Chassis Mount	SPDT	3 A	5000000 Cycles	0.047 in	1.2 mm	Lever Roller	On-Mom	1.2 mm	0.047 "	100000 Cycles	20 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	180 gf	20.7 mm	0.815 in	3.2 mm	0.125 in
Panasonic Electric Works ABV1612509	Chassis Mount	SPDT	5 A	5000000 Cycles	0.047 in	1.2 mm	Lever Straight	On-Mom	1.2 mm	0.047 "	100000 Cycles	13 gf	85 °C	-40 °C	250 V	IP67 - Dust Tight Waterproof	Wire Leads	120 gf	15.3 mm	0.602 "	3.2 mm	0.125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.66
		10	$ 4.53
		25	$ 4.30
		50	$ 4.19
		100	$ 3.62
		250	$ 3.39
		500	$ 3.22
		1000	$ 3.11
