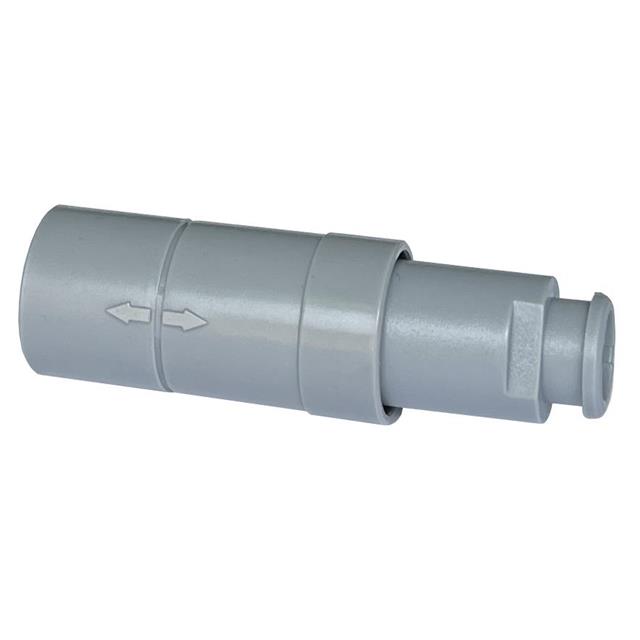

MMI-P1FG06SG52B

Active

Adam Tech

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-P1FG06SG52B

Active

Adam Tech

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-P1FG06SG52B

Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	118 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polycarbonate (PC)
Shielding	Unshielded
Voltage Rating	200 V

MMI-P1FG Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Contact Material	Orientation	Insert Material	Ingress Protection	Primary Material	Connector Type	Shell Material	Contact Finish - Mating	Features	Fastening Type	Color	Current Rating (Amps)	Voltage Rating
Adam Tech MMI-P1FG04SGG52	4	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	10 A	250 VDC
Adam Tech MMI-P1FG06SGG52	6	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	8 A	200 V
Adam Tech MMI-P1FG07SGG52	7	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	7 A	200 V
Adam Tech MMI-P1FG08SGG52	8	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	6 A	200 V
Adam Tech MMI-P1FG05SGG52		-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	9 A	250 VDC
Adam Tech MMI-P1FG06SG52B	6	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell Strain Relief	Push-Pull	Gray	8 A	200 V
Adam Tech MMI-P1FG10SGG52	10	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	4 A	200 V
Adam Tech MMI-P1FG04SG52B	4	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell Strain Relief	Push-Pull	Gray	10 A	250 VDC
Adam Tech MMI-P1FG10SG52B	10	-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell Strain Relief	Push-Pull	Gray	4 A	200 V
Adam Tech MMI-P1FG03SGG52		-55 °C	118 °C	Free Hanging (In-Line)	Unshielded	Brass	G	Polyphenylene Sulfide (PPS)	IP50	Plastic	Female Sockets Plug	Polycarbonate (PC)	Gold	Backshell	Push-Pull	Gray	12 A	300 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.72
		10	$ 5.16
		30	$ 4.56
		50	$ 4.32
		100	$ 4.25

Description

General part information

MMI-P1FG Series

6 Position Circular Connector Plug, Female Sockets Solder Cup
