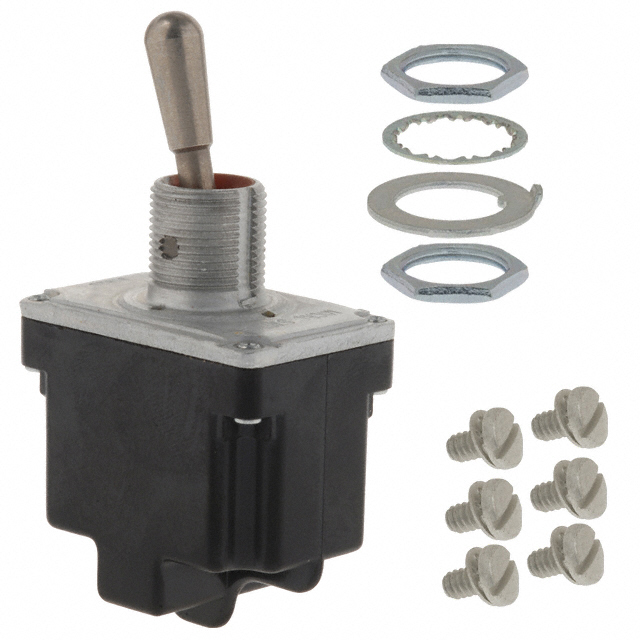

2TL1-8

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2TL1-8

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2TL1-8

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

2TL1 Series

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Switch Function	Actuator Material	Bushing Thread	Actuator Type	Actuator Length [x]	Ingress Protection	Voltage Rating - AC	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features
Honeywell Sensing and Productivity Solutions 2TL1-1D	Screw Terminal	71 °C	-65 ░C	DPDT	15 A	On-Off-On	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-5F	Screw Terminal	71 °C	-65 ░C	DPDT	10 A	On-Off-Mom	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-2F	Screw Terminal	71 °C	-65 ░C	DPST	15 A	On-Off	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-1L	Screw Terminal	71 °C	-65 ░C	DPDT	15 A	On-Off-On	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL11-50	Screw Terminal	71 °C	-65 ░C	DPDT	11 A 18 A	On-On-Mom	Nickel Plated	15/32-32	Standard Round	17.27 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm	28 V
Honeywell Sensing and Productivity Solutions 2TL1-8	Screw Terminal	71 °C	-65 ░C	DPDT	10 A	On-Mom	Nickel Plated	15/32-32	Standard Round	17.27 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-1P	Screw Terminal	71 °C	-65 ░C	DPDT	15 A	On-Off-On	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-12N	Screw Terminal	71 °C	-65 ░C	DPDT	15 A	On-On-On	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL1-3F	Screw Terminal	71 °C	-65 ░C	DPDT	15 A	On-On	Nickel Plated	15/32-32	Locking Lever	26.67 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm
Honeywell Sensing and Productivity Solutions 2TL126-70-A02	Screw Terminal	71 °C	-65 ░C	DPDT	11 A 18 A	Mom-On-Mom	Thermoplastic	15/32-32	Flatted	29.13 mm	Environment Sealed	125 V	Non-Illuminated	12.4 mm	28 V	Black Actuator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.71
		10	$ 43.74
		25	$ 41.23
		50	$ 39.43
		100	$ 37.70
		250	$ 37.61

Description

General part information

2TL1 Series

Toggle Switch DPDT Panel Mount
