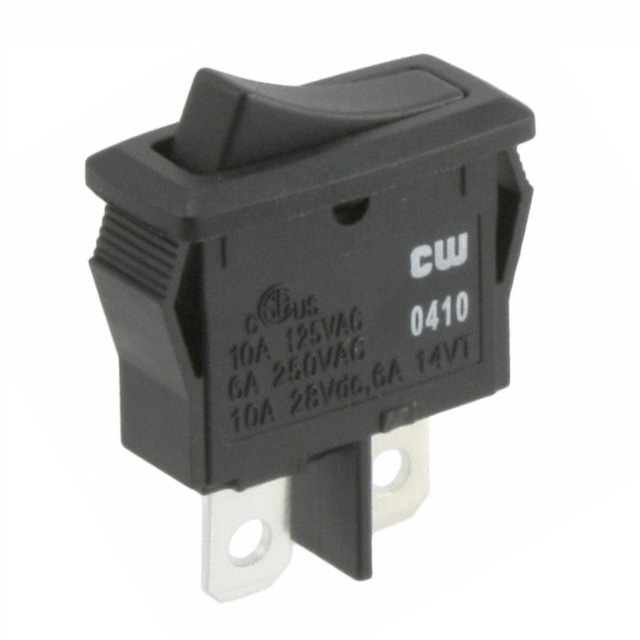

GRB243F02BB
ActiveCW Industries
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRB243F02BB
ActiveCW Industries
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB243F02BB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL, ENEC, CSA |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 7 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 2.75 | |
Description
General part information
GRB243F Series
Rocker Switch SPST-NO 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
