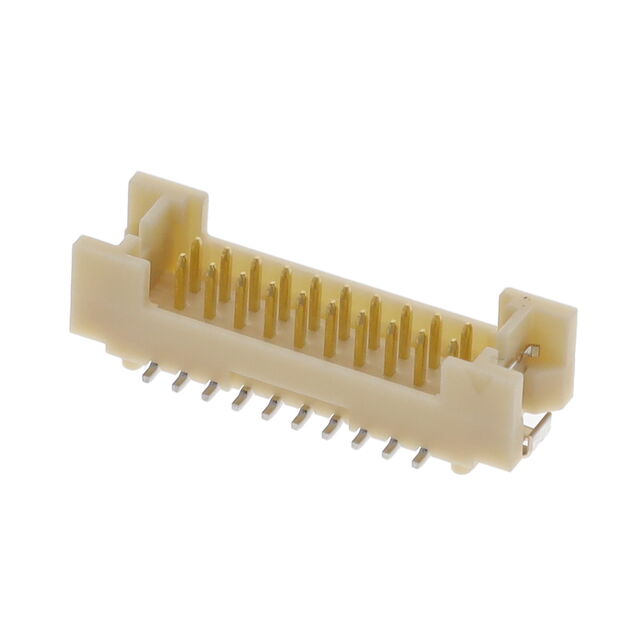

DF13E-20DP-1.25V(52)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF13E-20DP-1.25V(52)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13E-20DP-1.25V(52)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13E Series

Part	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Insulation Color	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Termination	Voltage Rating	Contact Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Material	Number of Rows	Features	Fastening Type	Contact Shape	Number of Positions Loaded	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Hirose Electric USA, Inc. DF13E-30DP-1.25V(83)
Hirose Electric USA, Inc. DF13E-20DP-1.25V(52)	Gold	20	Gold	Beige	4.8 mm	0.189 in	0.049 in	1.25 mm	Shrouded - 3 Wall	Solder	150 VDC	Male Pin	Board to Cable/Wire	-35 °C	85 °C	Through Hole Right Angle	Header	UL94 V-0	Brass	1.25 mm	0.049 in	1 A	Nylon Polyamide (PA)	2	Solder Retention	Push-Pull	Square	All
Hirose Electric USA, Inc. DF13E-30DP-1.25V(52)		30	Gold	Beige	4.8 mm	0.189 in	0.049 in	1.25 mm	Shrouded - 4 Wall	Solder	29.9 VAC/DC	Male Pin	Board to Cable/Wire	-35 °C	85 °C	Surface Mount	Header	UL94 V-0	Brass	1.25 mm	0.049 in	1 A	Nylon Polyamide (PA)	2	Solder Retention	Push-Pull	Square	All	5.8 mm
Hirose Electric USA, Inc. DF13E-10DP-1.25V(21)		10	Tin-Copper	Beige	4.8 mm	0.189 in	0.049 in	1.25 mm	Shrouded - 4 Wall	Solder	150 VDC	Male Pin	Board to Cable/Wire	-35 °C	85 °C	Surface Mount	Header	UL94 V-0	Brass	1.25 mm	0.049 in		Nylon Polyamide (PA)	2	Board Guide Solder Retention	Push-Pull	Square	All	5.8 mm	1 µm	39.4 µin	2.4 mm	0.094 in
Hirose Electric USA, Inc. DF13E-20DP-1.25V(35)
Hirose Electric USA, Inc. DF13E-40DP-1.25V(65)
