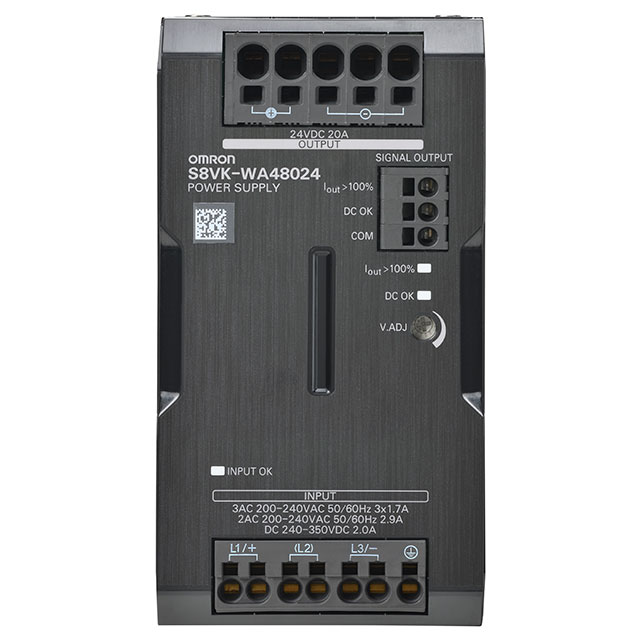

S8VK-WA48024
ActiveOmron Electronics Inc-EMC Div
AC/DC DIN RAIL SUPPLY 24V 480W
Deep-Dive with AI
Search across all available documentation for this part.
S8VK-WA48024
ActiveOmron Electronics Inc-EMC Div
AC/DC DIN RAIL SUPPLY 24V 480W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S8VK-WA48024 |
|---|---|
| AC Voltage - Input [Max] | 300 VAC, 264 VAC |
| AC Voltage - Input [Min] | 265 VAC, 170 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | RCM, TUV, CE, UL, cURus |
| Current - Output (Max) [Max] | 20 A |
| DC Voltage - Input (Max) [Max] | 350 V |
| DC Voltage - Input (Min) [Min] | 240 V |
| Efficiency | 94 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Power (Watts) | 480 W |
| Size / Dimension [x] | 4.39 in |
| Size / Dimension [x] | 111.4 mm |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 124 mm |
| Size / Dimension [z] | 4.88 " |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 516.44 | |
| 10 | $ 453.91 | |||
Description
General part information
S8VK-WA480 Series
AC/DC DIN RAIL SUPPLY 24V 480W
