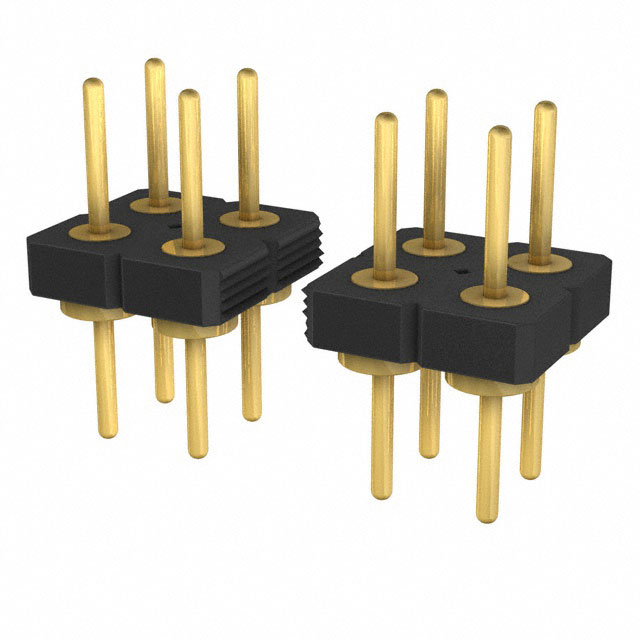

BDL-108-G-F

Active

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BDL-108-G-F

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.43 mm
Overall Contact Length	0.332 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Overall Contact Length
Samtec Inc. BDL-108-G-F	Black	2.54 mm	0.1 in	2	16	0.122 in	3.1 mm	0.085 "	2.15 mm	Circular	All	Male Pin	Push-Pull	3.18 mm	0.125 in	Gold	Solder	Nylon Polyamide (PA)	0.1 in	2.54 mm	Gold	Unshrouded	Through Hole	-55 °C	125 °C	0.51 µm	20 µin	Header	8.43 mm	0.332 in
Samtec Inc. BDL-108-G-E	Black	2.54 mm	0.1 in	2	16			0.07 in	1.78 mm	Circular	All	Male Pin	Push-Pull	3.18 mm	0.125 in	Gold	Solder	Nylon Polyamide (PA)	0.1 in	2.54 mm	Gold	Unshrouded	Through Hole	-55 °C	125 °C	0.51 µm	20 µin	Header		7.62 mm	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.100" (2.54mm)
