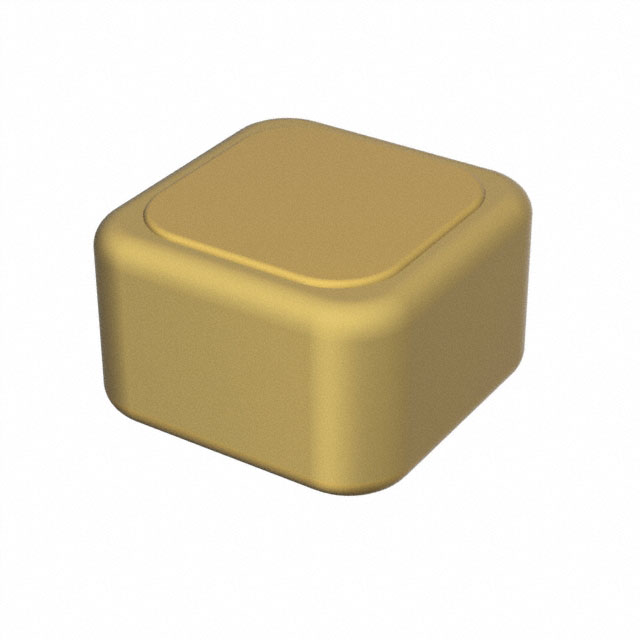

D10BL100M1BX

Active

Knowles Johanson Manufacturing

CAP CER 10PF 100V BL SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 10PF 100V BL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	D10BL100M1BX

Applications	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	10 pF
Features	Bonding Mountable, Single Layer
Mounting Type	Surface Mount, SLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard SMD
Size / Dimension [x]	0.25 mm
Size / Dimension [x]	0.01 inches
Size / Dimension [y]	0.25 mm
Size / Dimension [y]	0.01 inches
Temperature Coefficient	BL
Thickness (Max) [Max]	0.22 mm
Thickness (Max) [Max]	0.009 in
Tolerance	20 %
Voltage - Rated	100 V

Part	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Applications	Package / Case	Mounting Type	Features	Thickness (Max) [Max]	Thickness (Max) [Max]
Knowles Johanson Manufacturing D10BL100M1BX	BL	0.25 mm	0.25 mm	0.01 inches	0.01 inches	20 %	100 V	-55 °C	125 °C	10 pF	Bypass Decoupling High Frequency Microwave RF	Nonstandard SMD	Surface Mount SLCC	Bonding Mountable Single Layer	0.22 mm	0.009 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 pF ±20% 100V Ceramic Capacitor BL Nonstandard SMD
