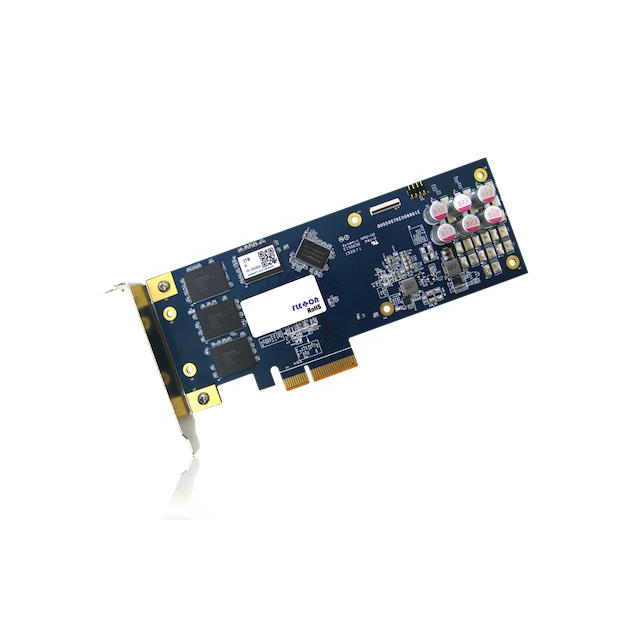

FCCD002TBC-EC00

Active

Flexxon Pte Ltd

SSD 2TB PCIE TLC NVME 12V

Search across all available documentation for this part.

Active

Flexxon Pte Ltd

SSD 2TB PCIE TLC NVME 12V

Technical Specifications

Parameters and characteristics for this part

Specification	FCCD002TBC-EC00

Form Factor	PCIe
Memory Size	2 TB
Memory Type	Solid State Drive (SSD) FLASH - NAND (TLC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	167.65 mm
Size / Dimension [y]	64.4 mm
Size / Dimension [z]	16.24 mm
Speed - Read	3.465 GB/s
Speed - Write	3.055 GB/s
Type	NVMe
Voltage - Supply	12 VDC

Part	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Speed - Write	Memory Size	Voltage - Supply	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Speed - Read	Memory Type	Type
Flexxon Pte Ltd FCCD002TBC-EC00	PCIe	70 °C	0 °C	3.055 GB/s	2 TB	12 VDC	64.4 mm	16.24 mm	167.65 mm	3.465 GB/s	Solid State Drive (SSD) FLASH - NAND (TLC)	NVMe

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 715.25

General part information

Solid State Drive (SSD) FLASH - NAND (TLC) 2TB NVMe PCIe 12V

Technical documentation and resources

No documents available
