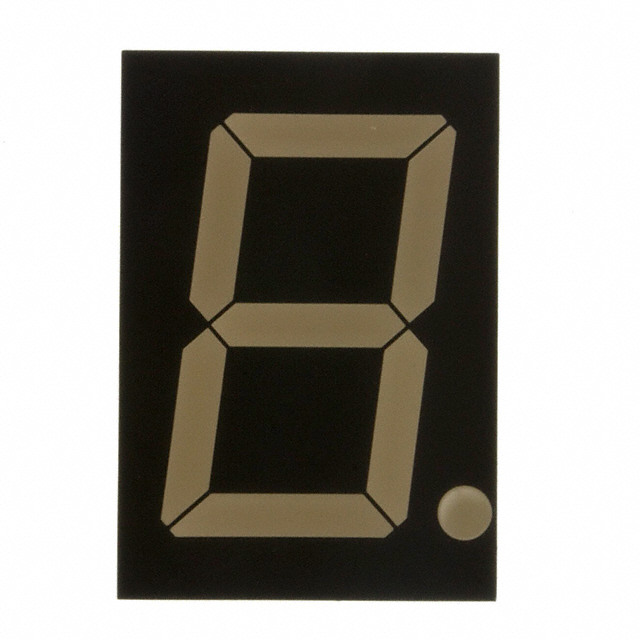

NARG105

Obsolete

Stanley Electric Co

DISPLAY 7SEG 1" SGL GN/RED 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NARG105

Obsolete

Stanley Electric Co

DISPLAY 7SEG 1" SGL GN/RED 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NARG105

Color	Red, Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	4 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Power Dissipation (Max)	80 mW, 96 mW
Size / Dimension [x]	22.8 mm
Size / Dimension [x]	0.898 in
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.299 in
Voltage - Forward (Vf) (Typ)	3.4 V, 4 V
Wavelength - Peak	660 nm, 570 nm

NARG1 Series

Part	Wavelength - Peak	Number of Characters [custom]	Display Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max)	Current - Test	Package / Case	Millicandela Rating	Color	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Digit/Alpha Size [x]	Digit/Alpha Size [x]
Stanley Electric Co NARG105	570 nm 660 nm	1	7-Segment	22.8 mm	33 mm	9 mm	1.299 in	0.898 in	0.354 in	1 in	25.4 mm	80 mW 96 mW	10 mA	14-DIP	4 mcd	Green Red	Common Anode	3.4 V 4 V
Stanley Electric Co NARG107	570 nm 660 nm	1	7-Segment	22.8 mm	33 mm	9 mm	1.299 in	0.898 in	0.354 in	1 in	25.4 mm	80 mW 96 mW	10 mA	14-DIP	4 mcd	Green Red	Common Anode	3.4 V 4 V
Stanley Electric Co NARG161	570 nm 660 nm	1	7-Segment	19 mm	8 mm	12.5 mm	0.315 "	0.748 in	0.492 "				10 mA	10-DIP	2.4 mcd	Green Red	Common Anode	1.7 V 2 V	0.6 in	15.24 mm	0.6 in	15.24 mm
Stanley Electric Co NARG163

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NARG1 Series

Display Modules - LED Character and Numeric Green, Red 7-Segment 1 Character Common Anode 4V, 3.4V 10mA 1.299" H x 0.898" W x 0.354" D (33.00mm x 22.80mm x 9.00mm) 14-DIP
