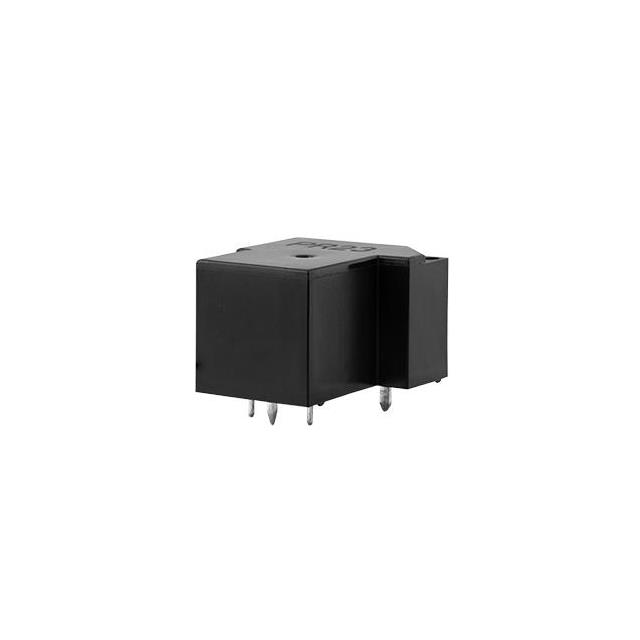

PR23-12V-900-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 30A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR23-12V-900-1A |
|---|---|
| Coil Current | 75 mA |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 7500 VA, 840 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.50 | |
| 10 | $ 2.18 | |||
| 25 | $ 2.07 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.90 | |||
| 250 | $ 1.80 | |||
| 450 | $ 1.74 | |||
| 950 | $ 1.67 | |||
| 4900 | $ 1.52 | |||
Description
General part information
PR23-12V Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
