S8M-AU_R1_000A1

Unknown

Panjit International Inc.

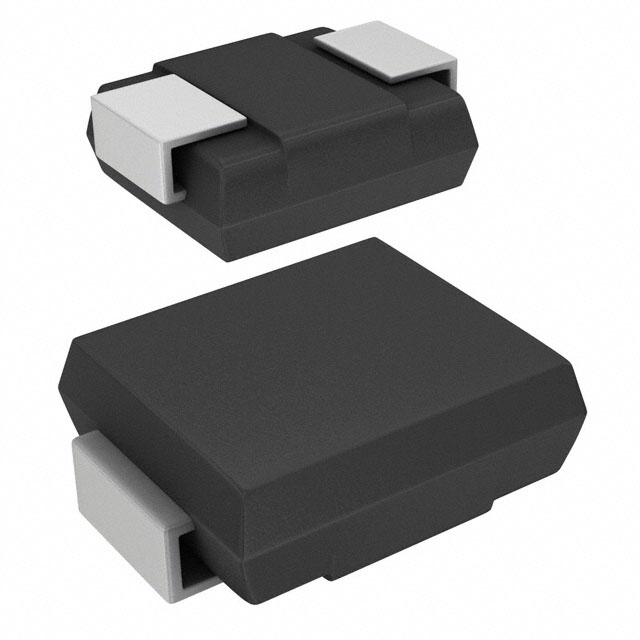

DIODE GEN PURP 1KV 8A SMC

Search across all available documentation for this part.

Unknown

Panjit International Inc.

DIODE GEN PURP 1KV 8A SMC

Technical Specifications

Parameters and characteristics for this part

Specification	S8M-AU_R1_000A1

Capacitance @ Vr, F	65 pF
Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	10 çA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMC, DO-214AB
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-214AB (SMC)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	985 mV

Part	Supplier Device Package	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Mounting Type	Speed	Speed	Technology	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Grade
Panjit International Inc. S8M_R1_00001	DO-214AB (SMC)	DO-214AB SMC	10 çA	985 mV	1000 V	65 pF	Surface Mount	Standard Recovery >500ns	200 mA	Standard	8 A	150 °C	-55 °C
Panjit International Inc. S8M-AU_R1_000A1	DO-214AB (SMC)	DO-214AB SMC	10 çA	985 mV	1000 V	65 pF	Surface Mount	Standard Recovery >500ns	200 mA	Standard	8 A	150 °C	-55 °C	AEC-Q101	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1000 V 8A Surface Mount DO-214AB (SMC)
