858-06/011
ActiveQualtek

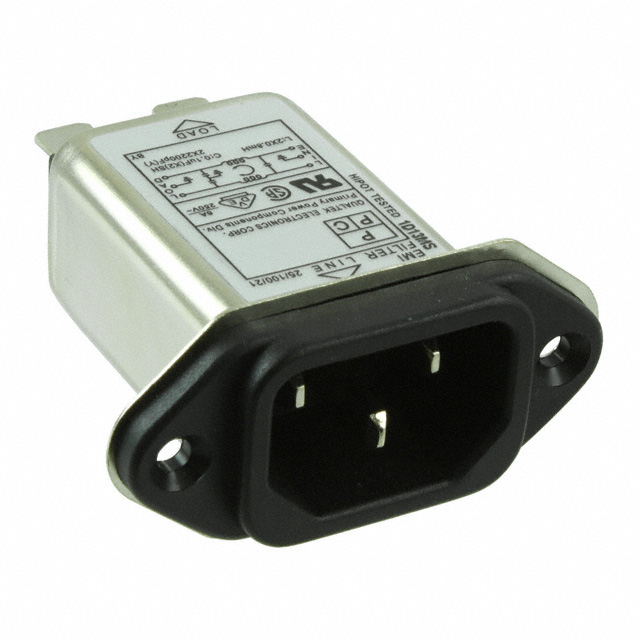

PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
858-06/011
ActiveQualtek
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 858-06/011 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.45 mm |
| Panel Cutout Dimensions [y] | 21.6 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.14 | |
| 10 | $ 7.36 | |||
| 25 | $ 6.96 | |||
| 45 | $ 6.79 | |||
| 90 | $ 6.45 | |||
| 270 | $ 5.77 | |||
| 450 | $ 5.43 | |||
| 945 | $ 4.75 | |||
Description
General part information
858-06 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
