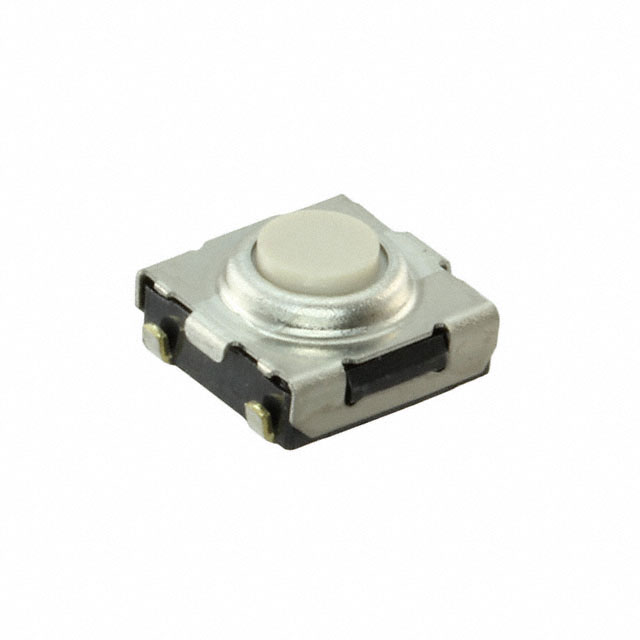

B3SN-3112

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	B3SN-3112

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Fully, Grounding Pin
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.5 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	SMD (SMT) Tab

Part	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Switch Function	Illumination	Ingress Protection	Mechanical Life	Circuit	Termination Style	Features	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Contact Rating @ Voltage	Outline [x]	Outline [y]
Omron Electronics Inc-EMC Div B3SN-3112	0.25 mm	70 °C	-25 °C	Standard	Surface Mount	Off-Mom	Non-Illuminated	IP67 - Dust Tight Waterproof	100000 Cycles	SPST-NO	SMD (SMT) Tab	Grounding Pin Sealed - Fully	3.1 mm	Top Actuated	0.05 A 24 VDC	6.5 mm	6 mm
Omron Electronics Inc-EMC Div B3SN-3112P	0.25 mm	70 °C	-25 °C	Standard	Surface Mount	Off-Mom	Non-Illuminated	IP67 - Dust Tight Waterproof	100000 Cycles	SPST-NO	SMD (SMT) Tab	Grounding Pin Sealed - Fully	3.1 mm	Top Actuated	0.05 A 24 VDC	6.5 mm	6 mm
