FFC3B11-20-T
ActiveGCT

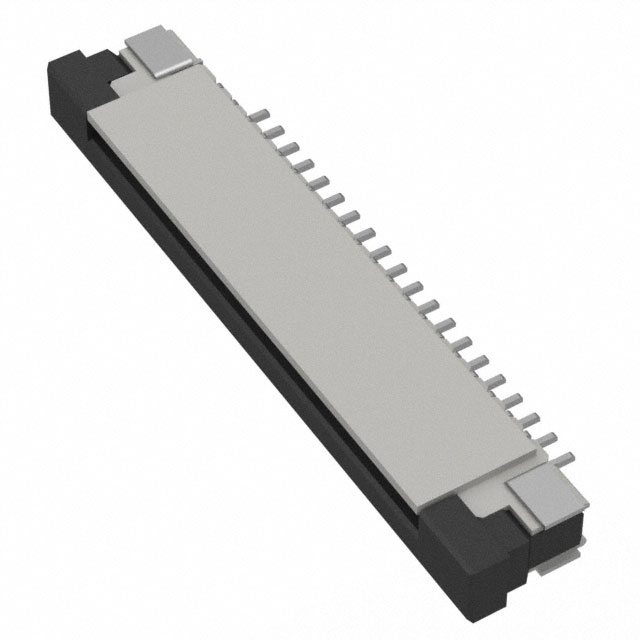

CONN FFC FPC TOP 20POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
FFC3B11-20-T
ActiveGCT
CONN FFC FPC TOP 20POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFC3B11-20-T |
|---|---|
| Actuator Color | Black |
| Actuator Material | Thermoplastic |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 400 mA |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.098 in |
| Height Above Board | 2.5 mm |
| Housing Color | Natural |
| Housing Material | Thermoplastic |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
FFC3B11 Series
| Part | Termination | Contact Material | Height Above Board | Height Above Board | Contact Finish | Mounting Type | Current Rating (Amps) | Cable End Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Connector/Contact Type | Locking Feature | Actuator Color | Mating Cycles | FFC, FCB Thickness | Pitch [x] | Pitch [x] | Actuator Material | Number of Positions | Voltage Rating | Flat Flex Type | Material Flammability Rating | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 20 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 8 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 4 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 40 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 6 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 10 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 30 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 18 | 50 V | FFC FPC | UL94 V-0 | Natural |
GCT | Solder | Phosphor Bronze | 0.098 in | 2.5 mm | Tin | Surface Mount Right Angle | 400 mA | Tapered | Solder Retention | -25 °C | 85 °C | Thermoplastic | Contacts Top | Slide Lock | Black | 20 | 0.3 mm | 0.039 in | 1 mm | Thermoplastic | 50 V | FFC FPC | UL94 V-0 | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.18 | ||
Description
General part information
FFC3B11 Series
20 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
