SMLV36WBFCW1
ObsoleteRohm Semiconductor

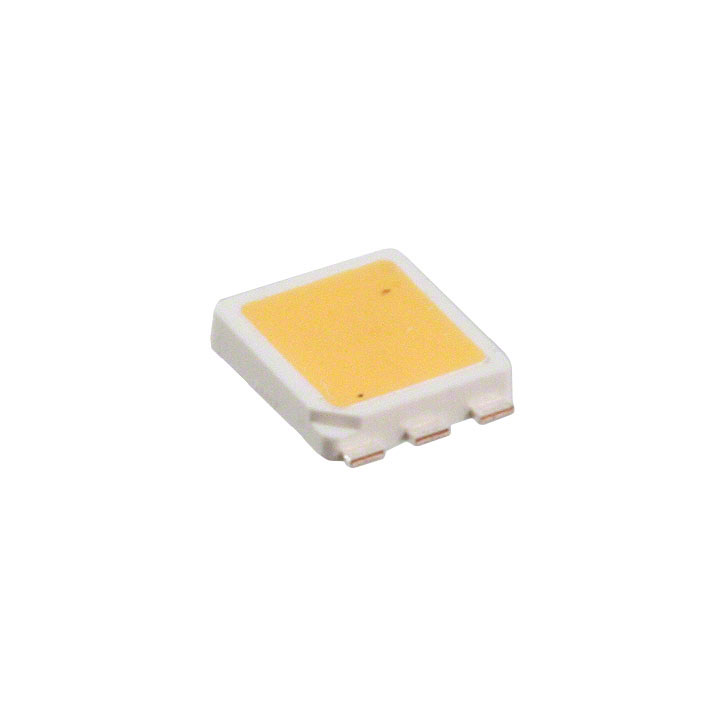

LED SMLV36 COOL WHITE 8000K 1411
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMLV36WBFCW1
ObsoleteRohm Semiconductor
LED SMLV36 COOL WHITE 8000K 1411
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLV36WBFCW1 |
|---|---|
| CCT (K) | 8000 K |
| Color | Cool, White |
| Current - Max [Max] | 105 mA |
| Current - Test | 90 mA |
| Flux @ 25°C, Current - Test | 30 lm |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1211, 3228 Metric |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [y] | 2.8 mm |
| Size / Dimension [y] | 0.11 in |
| Supplier Device Package | 1411 |
| Supplier Device Package | 3528 |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.26 | |
| 10 | $ 1.50 | |||
| Tape & Reel (TR) | 1000 | $ 0.90 | ||
| 2000 | $ 0.85 | |||
| 5000 | $ 0.83 | |||
| 10000 | $ 0.82 | |||
Description
General part information
SMLV36 Series
LED Lighting SMLV36 White, Cool 8000K 3.4V 90mA 1211 (3228 Metric)
