1211-40110

Active

Amphenol SV Microwave

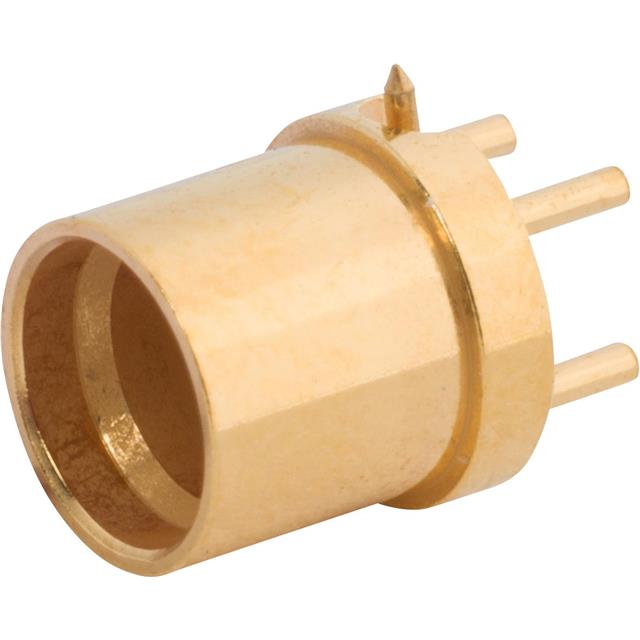

SMP MALE PCB THRU-HOLE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoard to Board Brochure

1211-40110

Active

Amphenol SV Microwave

SMP MALE PCB THRU-HOLE CONNECTOR

Deep-Dive with AI

DocumentsBoard to Board Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1211-40110

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyamide-Imide (PAI)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

1211-40 Series

Part	Fastening Type	Center Contact Plating	Mounting Type	Body Finish	Connector Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Shield Termination	Body Material	Dielectric Material	Features	Mating Cycles	Housing Color	Contact Termination	Center Contact Material	Frequency - Max [Max]
Amphenol SV Microwave 1211-40087	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Pre-Tinned (J-STD-001) Smooth Bore	1000	Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40116	Snap-On	Gold	Through Hole	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40001-TD	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms			1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Smooth Bore	1000	Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40110	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40004	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Limited Detent	500	Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40080	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Pre-Tinned (J-STD-001) Smooth Bore	1000	Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40082	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40113	Snap-On	Gold	Through Hole	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40003-TD	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40089	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	25 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 45.95
		10	$ 42.16
		25	$ 40.54
		40	$ 39.19
		100	$ 37.03

Description

General part information

1211-40 Series

SMP Connector Plug, Male Pin 50 Ohms Surface Mount, Through Hole Solder

Documents

Technical documentation and resources

Board to Board Brochure

Datasheet
