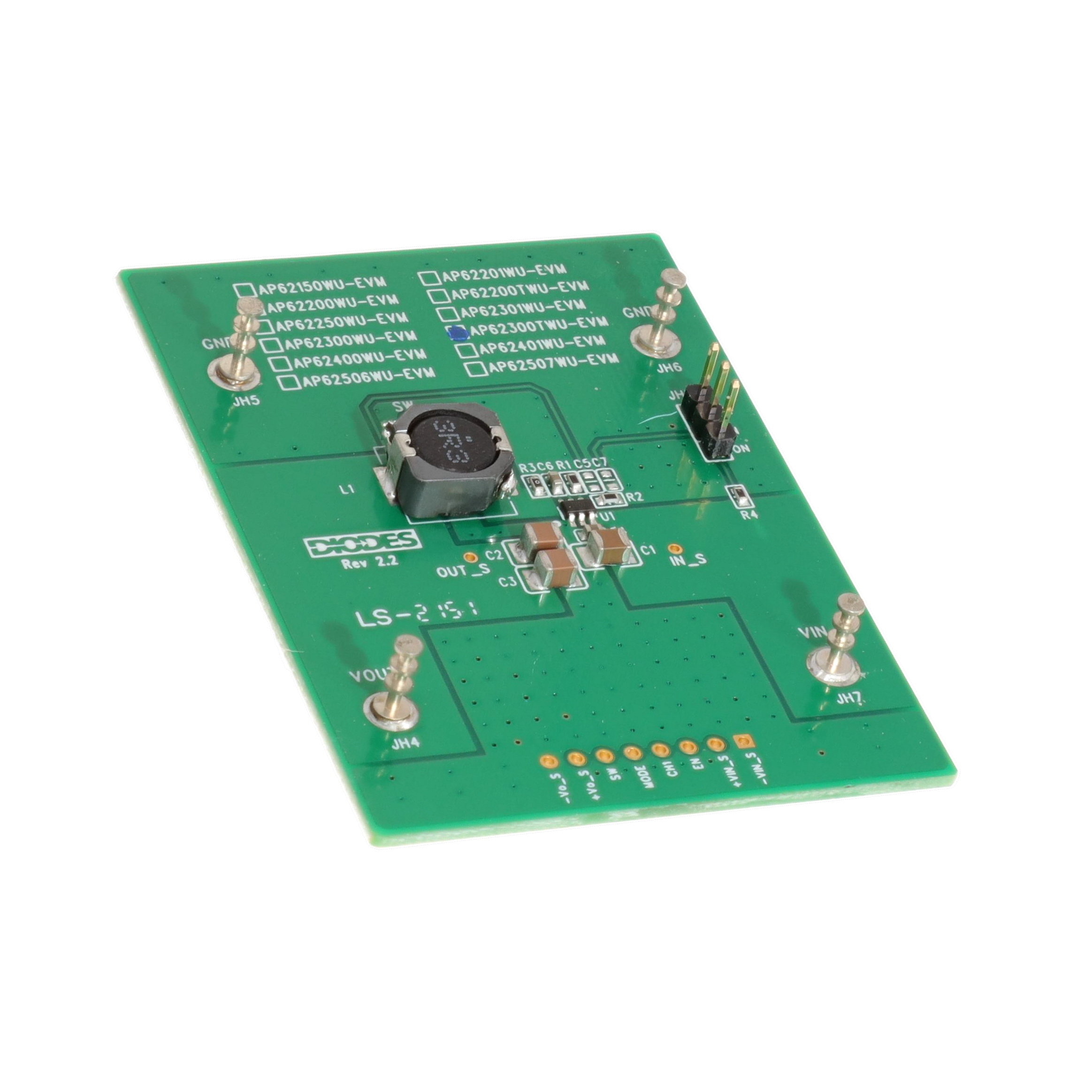

AP62300TWU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP62300T

Deep-Dive with AI

Search across all available documentation for this part.

AP62300TWU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP62300T

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP62300TWU-EVM

Board Type	Fully Populated
Current - Output	3 A
Frequency - Switching	750 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP62300T
Voltage - Input [Max]	18 V
Voltage - Input [Min]	4.2 V
Voltage - Output [Max]	7 V
Voltage - Output [Min]	0.8 V

AP62300T Series

4.2V TO 18V INPUT, 3A LOW IQ SYNCHRONOUS BUCK CONVERTER, PFM/PWM, VREF 0.763V

Part	Current - Output	Main Purpose	Utilized IC / Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Frequency - Switching	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Qualification	Topology	Voltage - Input (Min) [Min]	Grade	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration	Number of Outputs	Mounting Type	Function
Diodes Inc AP62300Z6-EVM	3 A	DC/DC Step Down	AP62300	Fully Populated	Board(s)	Non-Isolated	1	750 kHz	Buck	18 V	4.2 V	0.8 V	7 V
Diodes Inc AP62300WU-7	3 A							750 kHz						AEC-Q100	Buck	4.2 V	Automotive	0.8 V	7 V	SOT-23-6 Thin TSOT-23-6	18 V	85 °C	-40 °C	Adjustable	Positive	1	Surface Mount	Step-Down
Diodes Inc AP62300TWU-EVM	3 A	DC/DC Step Down	AP62300T	Fully Populated	Board(s)	Non-Isolated	1	750 kHz	Buck	18 V	4.2 V	0.8 V	7 V
Diodes Inc AP62300TWU-7	3 A							750 kHz							Buck	4.2 V		0.763 V	7 V	SOT-23-6 Thin TSOT-23-6	18 V	85 °C	-40 °C	Adjustable	Positive	1	Surface Mount	Step-Down

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP62300T Series

The AP62300/AP62301/AP62300T is a 3A, synchronous buck converter with a wide input voltage range of 4.2V to 18V. The device fully integrates a 75mΩ high-side power MOSFET and a 45mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

Documents

Technical documentation and resources

No documents available
