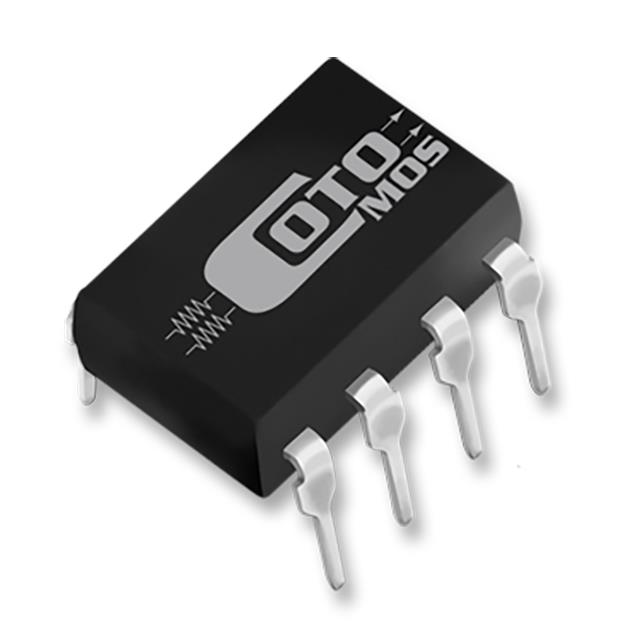

CT335

Obsolete

Coto Technology

SSR RELAY SPST-NO 80MA 0-80V

Search across all available documentation for this part.

Obsolete

Coto Technology

SSR RELAY SPST-NO 80MA 0-80V

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Load Current	On-State Resistance (Max) [Max]	Output Type	Termination Style	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input	On-State Resistance (Max)	Package / Case	Circuit	Package / Case [custom]	Package / Case [x]
Coto Technology CT140	6-DIP	Through Hole	1500 V	0 V	45 mA	200 Ohm	AC DC	PC Pin	6-DIP	0.3 in	7.62 mm	85 °C	-40 °C	1.17 VDC
Coto Technology CS147	6-SMD	Surface Mount	80 V	0 V	2 A		AC DC	Gull Wing	6-SMD		0.3 in	85 °C	-40 °C	1.37 VDC	160 mOhms	7.62 mm
Coto Technology C347S	8-SOP	Surface Mount	80 V	0 V	1 A	150 mOhms	AC DC	Gull Wing	8-SOP			85 °C	-40 °C	1.37 VDC			SPST-NO (1 Form A) x 2	4.4 mm	0.173 in
Coto Technology C226S	4-SOP	Surface Mount			2 A	85 mOhms	AC DC	Gull Wing	4-SOP		0.173 in	85 °C	-40 °C	1.37 VDC		4.4 mm
Coto Technology CS128	6-SMD	Surface Mount			4.5 A	50 mOhms	AC DC	Gull Wing	6-SMD		0.3 in	85 °C	-40 °C	1.37 VDC		7.62 mm
Coto Technology C337S	8-SOP	Surface Mount	60 V	0 V	320 mA	1.6 Ohms	AC DC	Gull Wing	8-SOP			85 °C	-40 °C	1.37 VDC			SPST-NO (1 Form A) x 2	4.4 mm	0.173 in
Coto Technology C236S		Surface Mount	60 V	0 V	1 A	60 mOhms	DC	Gull Wing				85 °C	-40 °C	5 VDC
Coto Technology CS130	6-SMD	Surface Mount			120 mA	30 Ohm	AC DC	Gull Wing	6-SMD		0.3 in	85 °C	-40 °C	1.37 VDC		7.62 mm
Coto Technology CT335	8-DIP	Through Hole	80 V	0 V	80 mA	30 Ohm	AC DC	PC Pin	8-DIP		0.3 in	85 °C	-40 °C	1.37 VDC		7.62 mm	SPST-NO (1 Form A) x 2
Coto Technology CS331	8-SMD	Surface Mount	350 V	0 V	110 mA	24 Ohm	AC DC	Gull Wing	8-SMD		0.3 in	85 °C	-40 °C	1.37 VDC		7.62 mm	SPST-NO (1 Form A) x 2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) x 2 8-DIP (0.300", 7.62mm)
