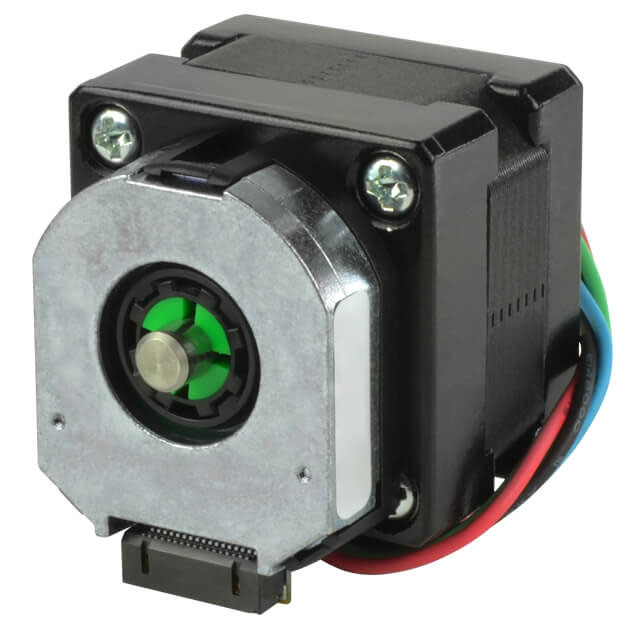

NEMA14-10-08D-AMT112S
ActiveCUI Devices
STEPPER MOTOR W/ INCREMENTAL ENC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NEMA14-10-08D-AMT112S |
|---|---|
| Accuracy | 0.2 % |
| Approval Agency | CE |
| Coil Resistance | 8.5 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 350 mA |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Length - Shaft and Bearing [x] | 15.3 mm |
| Length - Shaft and Bearing [x] | 0.602 in |
| Mounting Hole Spacing | 1.023 in |
| Mounting Hole Spacing | 26 mm |
| NEMA Frame Size | 14 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 0.26 gcm˛ |
| Size / Dimension [x] | 1.39 in |
| Size / Dimension [x] | 35.3 mm |
| Size / Dimension [y] | 35.3 mm |
| Size / Dimension [y] | 1.39 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 52.96 mNm |
| Torque - Holding (oz-in / mNm) | 7.5 oz-in |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 103.73 | |
| 10 | $ 100.03 | |||
| 50 | $ 94.47 | |||
| 100 | $ 92.62 | |||
Description
General part information
NEMA14 Series
Bipolar Stepper Motor Frame Size 14 200.0 Step 350 mA 24 ~ 48VDC
