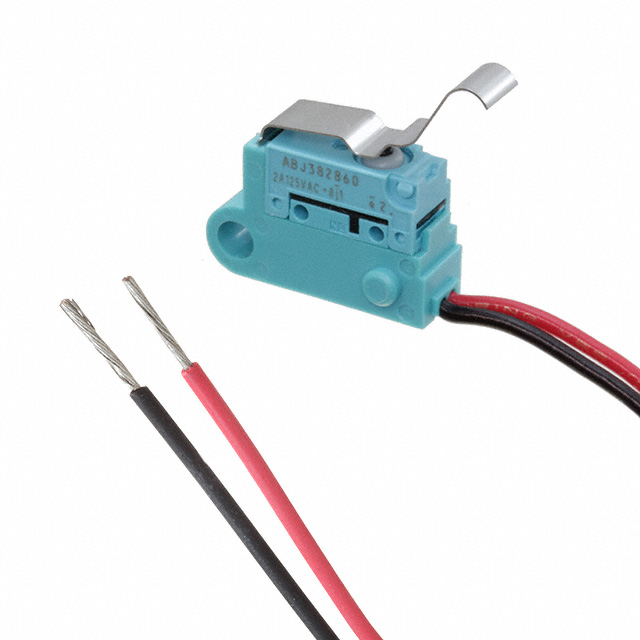

ABJ382860
ActivePanasonic Electric Works
SWITCH SNAP ACT SPST-NC 2A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ABJ382860
ActivePanasonic Electric Works
SWITCH SNAP ACT SPST-NC 2A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ABJ382860 |
|---|---|
| Actuator Type | Leaf, Lever |
| Circuit | SPST-NC |
| Current Rating (Amps) | 2 A |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 30000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 179 gf |
| Operating Position | 0.64 in |
| Operating Position | 16.3 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.055 in |
| Overtravel | 1.4 mm |
| Release Force | 27 gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.83 | |
| 10 | $ 3.86 | |||
| 25 | $ 3.67 | |||
| 50 | $ 3.57 | |||
| 200 | $ 3.40 | |||
Description
General part information
ABJ382 Series
Switch SPST-NC Chassis Mount
