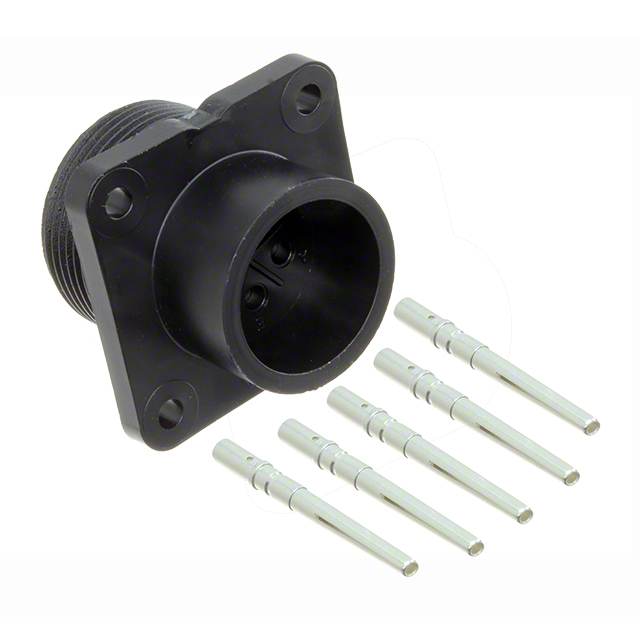

CXC3102A16S8P

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS SILVER CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXC3102A16S8P

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS SILVER CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXC3102A16S8P

Applications	Lighting
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	16S-8
Shielding	Unshielded
Termination	Crimp
Voltage Rating	500 V

CXC3102A Series

Part	Shell Size - Insert	Shielding	Connector Type	Mounting Feature	Termination	Voltage Rating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Color	Primary Material	Contact Material	Contact Finish - Mating	Applications	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Conxall/Switchcraft CXC3102A14S1S	14S-1	Unshielded	Receptacle Female Sockets	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting
Conxall/Switchcraft CXC3102A14S7S	14S-7	Unshielded	Receptacle Female Sockets	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting
Conxall/Switchcraft CXC3102A14S1P	14S-1	Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting
Conxall/Switchcraft CXC3102A1819P		Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting	10	18	19
Conxall/Switchcraft CXC3102A16S8P	16S-8	Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting
Conxall/Switchcraft CXC3102A1812S	18-12	Unshielded	Receptacle Female Sockets	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting	6
Conxall/Switchcraft CXC3102A2821S		Unshielded	Receptacle Female Sockets	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting	37	28	21
Conxall/Switchcraft CXC3102A242P	24-2	Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting	7
Conxall/Switchcraft CXC3102A184P	18-4	Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting	4
Conxall/Switchcraft CXC3102A14S7P	14S-7	Unshielded	Male Pins Receptacle	Flange	Crimp	500 V	Keyed	125 °C	-40 °C	Black	Plastic	Brass	Silver	Lighting

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.97
		10	$ 8.83
		25	$ 8.49
		50	$ 8.15
		100	$ 7.97

Description

General part information

CXC3102A Series

5 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources
