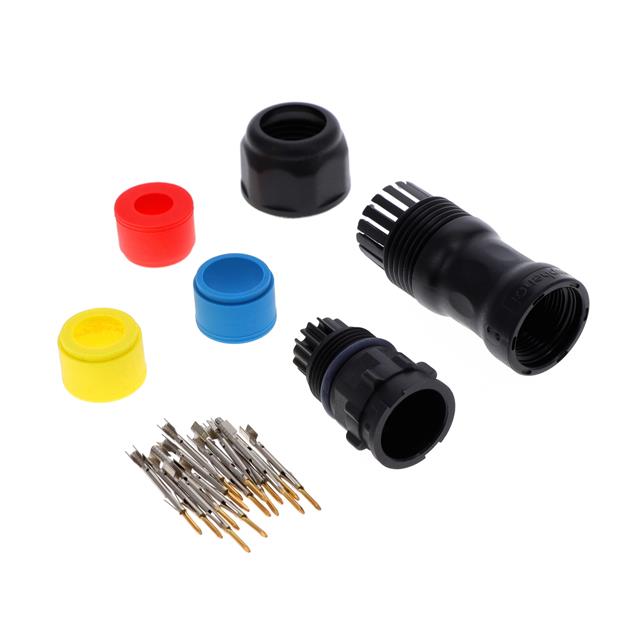

ACD-14BMMC-LL7AP0

Active

Amphenol LTW

CONN RCPT MALE 14POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 14POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-14BMMC-LL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

Part	Features	Backshell Material, Plating	Color	Ingress Protection	Contact Finish - Mating	Termination	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Size - Insert	Mounting Type	Shell Material	Contact Material	Voltage Rating	Connector Type	Fastening Type	Shielding	Number of Positions	Orientation	Insert Material
Amphenol LTW ACD-14BMMC-LL7AP0	Backshell	Glass Filled Nylon Polyamide (PA)	Black	IP67 - Dust Tight Waterproof	Gold	Crimp	UL94 V-0	5 A	-40 °C	105 ░C	Plastic	C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Copper Alloy	300 VDC	Male Pins Receptacle	Bayonet Lock	Unshielded	14	Keyed	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 (Data) Position Circular Connector Receptacle, Male Pins Crimp
