Q2-F-2-01-MS50FT

Active

Qualtek

HEATSHRINK POLY Q2F 2" BLK 50'

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK POLY Q2F 2" BLK 50'

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-2-01-MS50FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	25.4 mm
Inner Diameter - Recovered [diameter]	1 in
Inner Diameter - Supplied [diameter]	50.8 mm
Inner Diameter - Supplied [diameter]	2 in
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.043 in
Recovered Wall Thickness	1.09 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Shrink Temperature	Material	Shelf Life	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Length [x]	Length [x]
Qualtek Q2-F-2-01-MS50FT	135 °C	-55 °C	15.2 m	50 ft	70 °C	Polyolefin (PO)	144 Months	2 to 1	25.4 mm	1 in	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	Black	Tubing Flexible	50.8 mm	2 in	Flame Retardant
Qualtek Q2-F-2-01-QB48IN-5	135 °C	-55 °C			70 °C	Polyolefin (PO)	144 Months	2 to 1	25.4 mm	1 in	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	Black	Tubing Flexible	50.8 mm	2 in	Flame Retardant	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

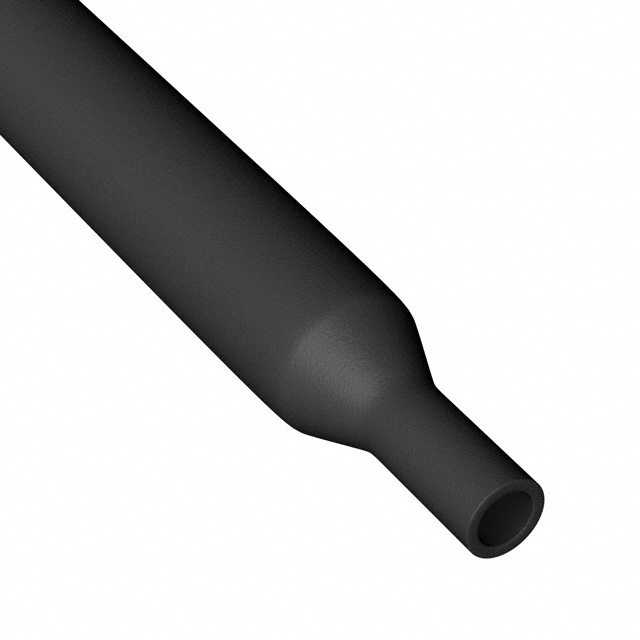

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 2 to 1 Black 50.0' (15.2m)

Technical documentation and resources
