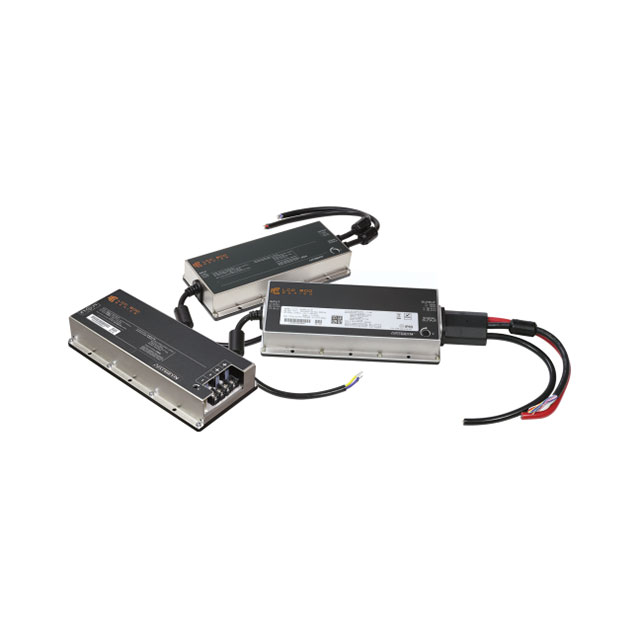

LCC600-36U-4PV

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 36V 600W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCC600-36U-4PV

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 36V 600W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCC600-36U-4PV

Applications	ITE (Commercial), Medical
Current - Output 1	16.7 A
Efficiency	92 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	600 W
Size / Dimension [x]	228 mm
Size / Dimension [x]	8.98 "
Size / Dimension [y]	3.98 in
Size / Dimension [y]	101 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.8 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	36 V

LCC600 Series

Part	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Applications	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Efficiency	Voltage - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Number of Outputs	Features
ARTESYN / Advanced Energy LCC600-36H-9P	16.7 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial)	3000 V	305 VAC	180 VAC	CB CE	93 %	36 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output
ARTESYN / Advanced Energy LCC600-36U-4PR	16.7 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC		92 %	36 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1
ARTESYN / Advanced Energy LCC600-36U-4PV	16.7 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC		92 %	36 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1
ARTESYN / Advanced Energy LCC600-28U-9P24	25 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC		93 %	24 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1
ARTESYN / Advanced Energy LCC600-48U-4P	12.5 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC	CB CE	93 %	48 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface IP64 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input
ARTESYN / Advanced Energy LCC600-48H-4P	12.5 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial)	3000 V	305 VAC	180 VAC	CB CE	93 %	48 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface IP65 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output
ARTESYN / Advanced Energy LCC600-36U-9P	16.7 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC	CB CE	93 %	36 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input
ARTESYN / Advanced Energy LCC600-12U-9P	50 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial) Medical	4000 V	264 VAC	90 VAC	CB CE	93 %	12 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input
ARTESYN / Advanced Energy LCC600-12H-9P	50 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial)	3000 V	305 VAC	180 VAC	CB CE	93 %	12 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output
ARTESYN / Advanced Energy LCC600-12H-4P	50 A	85 °C	-40 °C	600 W	Enclosed	ITE (Commercial)	3000 V	305 VAC	180 VAC	CB CE	93 %	12 V	Chassis Mount	228 mm	1.57 "	3.98 in	8.98 "	39.8 mm	101 mm	60601-1 60950-1 62368-1	1	Adjustable Output I2C Interface IP64 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 298.75

Description

General part information

LCC600 Series

Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
