C1363.38.90
ActivePrysmian Group
CABLE SPKR 2COND 12AWG CLEAR 25'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1363.38.90
ActivePrysmian Group
CABLE SPKR 2COND 12AWG CLEAR 25'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1363.38.90 |
|---|---|
| Cable Type | Speaker |
| Conductor Material | Copper, Tinned, Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Jacket (Insulation) Diameter [diameter] | 8.2 mm |
| Jacket (Insulation) Diameter [diameter] | 0.323 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.025 in |
| Jacket (Insulation) Thickness | 0.635 mm |
| Jacket Color | Clear |
| Length | 15.24 m |
| Length [x] | 30.5 m, 7.62 m, 152.4 m |
| Length [x] | 100 ft, 25 ft, 50 ft, 500 ' |
| Number of Conductors | 2 |
| Usage | Home, Audio-Video |
| Voltage | 120 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 157.15 | |
| 1 | $ 80.55 | |||
| 1 | $ 42.96 | |||
| 5 | $ 35.15 | |||
| 5 | $ 128.58 | |||
| 5 | $ 65.91 | |||
| 10 | $ 27.34 | |||
| 10 | $ 100.01 | |||
| 10 | $ 51.26 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.79 | |||
| 1500 | $ 0.77 | |||
| 2500 | $ 0.74 | |||
| 3500 | $ 0.72 | |||
| 5000 | $ 0.70 | |||
| 12500 | $ 0.65 | |||
Description
General part information
C1363 Series

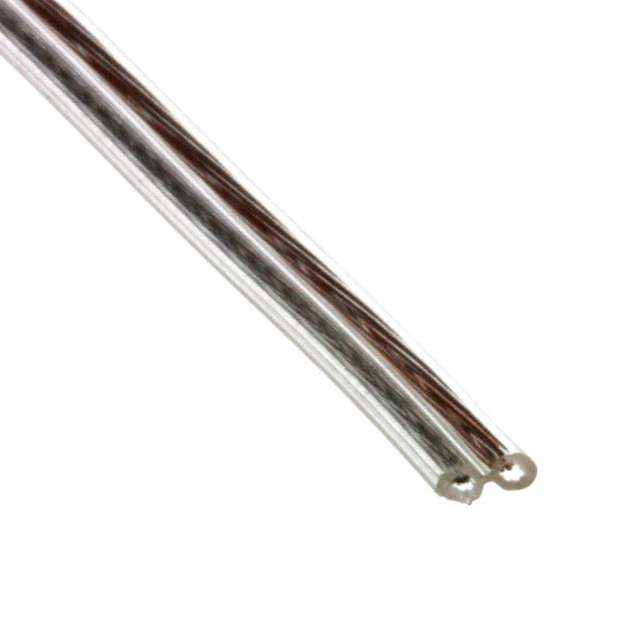

2 Conductor Speaker Cable Clear 12 AWG 25.00' (7.62m)
