TANGO20/3M/SMAM/S/S/26
ActiveSiretta Ltd

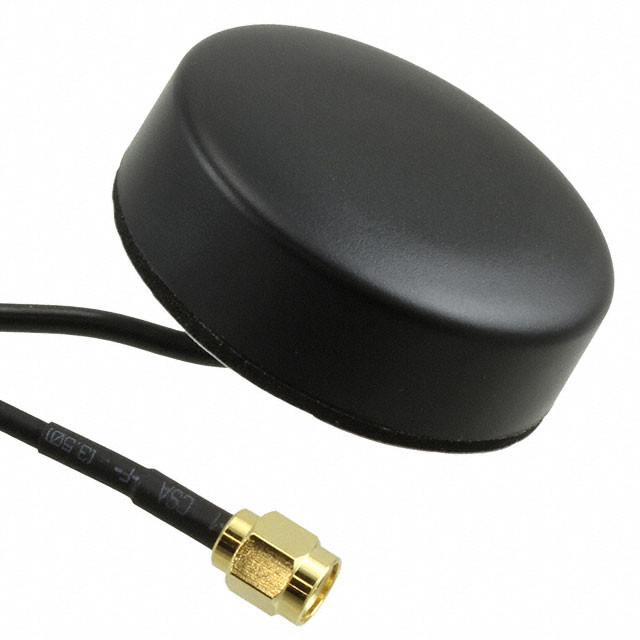

RF ANT 1.575GHZ PUCK SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
TANGO20/3M/SMAM/S/S/26
ActiveSiretta Ltd
RF ANT 1.575GHZ PUCK SMA MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TANGO20/3M/SMAM/S/S/26 |
|---|---|
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 28 dBi |
| Height (Max) | 14.5 mm |
| Height (Max) [Max] | 0.571 in |
| Ingress Protection | IP67 |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.35 | |
| 10 | $ 24.26 | |||
| 25 | $ 22.19 | |||
| 100 | $ 19.88 | |||
| 250 | $ 19.09 | |||
Description
General part information
TANGO20 Series
RF ANTENNA GPS Puck SMA Male Panel Mount
