AHDBM06-24-91SN-059

Active

Amphenol Sine Systems Corp

SIZE 24, 9 POSITION ISOBUS PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AHDBM06-24-91SN-059

Active

Amphenol Sine Systems Corp

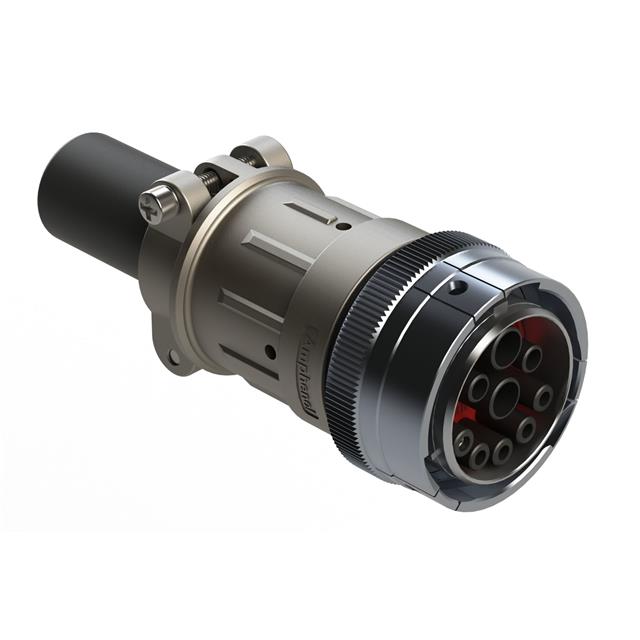

SIZE 24, 9 POSITION ISOBUS PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDBM06-24-91SN-059

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8 (2), 12 (2), 16 (5)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	91
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Female Sockets

AHDBM06 Series

Part	Shielding	Connector Type	Insert Material	Housing Color	Ingress Protection	Shell Material	Type	Contact Size	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Orientation	Fastening Type	Mounting Type	Note	Primary Material	Number of Positions	Includes
Amphenol Sine Systems Corp AHDBM06-24-91SR16	Unshielded	Plug Housing	Thermoplastic	Silver	IP68 IP69K	Zinc Alloy	For Female Sockets	12 (2) 16 (5) 8 (2)	Nickel	-55 °C	125 °C	Crimp	Circular	Coupling Nut	91	24	Keyed	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Metal	9
Amphenol Sine Systems Corp AHDBM06-24-91SN-059	Unshielded	Plug Housing	Thermoplastic	Silver	IP68 IP69K	Zinc Alloy	For Female Sockets	12 (2) 16 (5) 8 (2)	Nickel	-55 °C	125 °C	Crimp	Circular	Backshell Cable Clamp Coupling Nut	91	24	Keyed	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Metal	9	1 Backshell 1 Connector
Amphenol Sine Systems Corp AHDBM06-24-91SN	Unshielded	Plug Housing	Thermoplastic	Silver	IP68 IP69K	Zinc Alloy	For Female Sockets	12 (2) 16 (5) 8 (2)	Nickel	-55 °C	125 °C	Crimp	Circular	Coupling Nut	91	24	Keyed	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Metal	9
Amphenol Sine Systems Corp AHDBM06-24-91SR-059	Unshielded	Plug Housing	Thermoplastic	Silver	IP67 IP69K	Zinc Alloy	For Female Sockets	12 (2) 16 (5) 8 (2)	Nickel	-55 °C	125 °C	Crimp	Circular	Backshell Cable Clamp Coupling Nut	91	24	Keyed	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Metal	9	1 Backshell 1 Connector
Amphenol Sine Systems Corp AHDBM06-24-91SR16-059	Unshielded	Plug Housing	Thermoplastic	Silver	IP67 IP69K	Zinc Alloy	For Female Sockets	12 (2) 16 (5) 8 (2)	Nickel	-55 °C	125 °C	Crimp	Circular	Backshell Cable Clamp Coupling Nut	91	24	Keyed	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Metal	9	1 Backshell 1 Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.40
		10	$ 44.42
		25	$ 42.71
		50	$ 41.28
		200	$ 39.01

Description

General part information

AHDBM06 Series

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
