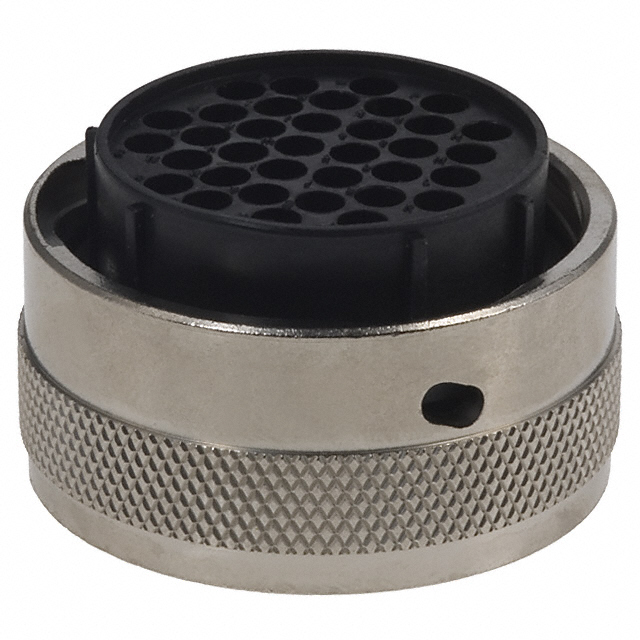

UTG622-35SN
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG FMALE 35POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTG622-35SN
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG FMALE 35POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTG622-35SN |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 35 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Unshielded |
| Type | For Female Sockets |
UTG62 Series
| Part | Shell Finish | Number of Positions | Features | Shell Material | Contact Shape | Fastening Type | Contact Type | Shielding | Note | Type | Material Flammability Rating | Insert Material | Orientation | Shell Size - Insert | Contact Size | Mounting Type | Housing Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Size | Contact Size | Contact Size | Number of Positions [custom] | For Use With/Related Products | Accessory Type | Material | Color | Shell Size - Insert | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Nickel | 11 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Female Sockets | UL94 V-0 | Thermoplastic Glass Filled | N | 24-11 | 16 (7) 8 (4) | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | ||||||||||||
Souriau-Sunbank by Eaton | Nickel | 28 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Male Pins | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 28 | 20 | 16 | |||||||||||
Souriau-Sunbank by Eaton | Nickel | 8 9 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Male Pins | UL94 V-0 | Thermoplastic Glass Filled | N | 24-7 | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 8 | 16 | PE | ||||||||||
Souriau-Sunbank by Eaton | Nickel | 48 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Male Pins | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 48 | 24 | 16 | |||||||||||
Souriau-Sunbank by Eaton | Nickel | 35 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Female Sockets | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 35 | 22 | 16 | |||||||||||
Souriau-Sunbank by Eaton | Dust Tight Metal Chain Waterproof | Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Plugs | Cap (Cover) Dust | Plastic | Black | 22 | ||||||||||||||||||||||||||
Souriau-Sunbank by Eaton | Nickel | 48 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Female Sockets | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 48 | 24 | 16 | |||||||||||
Souriau-Sunbank by Eaton | Nickel | 8 9 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Female Sockets | UL94 V-0 | Thermoplastic Glass Filled | N | 24-7 | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 8 | 16 | PE | ||||||||||
Souriau-Sunbank by Eaton | Nickel | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Female Sockets | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 20 | 20 | 16 | PE | 19 20 | ||||||||||
Souriau-Sunbank by Eaton | Nickel | 35 | Coupling Nut | Brass | Circular | Bayonet Lock | Crimp | Unshielded | Contacts Not Included | For Male Pins | UL94 V-0 | Thermoplastic Glass Filled | N | Free Hanging (In-Line) | Silver | Plug Housing | -55 °C | 125 °C | 35 | 22 | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.58 | |
| 10 | $ 18.90 | |||
| 25 | $ 18.08 | |||
| 50 | $ 17.50 | |||
| 100 | $ 16.91 | |||
| 250 | $ 15.98 | |||
| 500 | $ 15.52 | |||
Description
General part information
UTG62 Series
35 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
