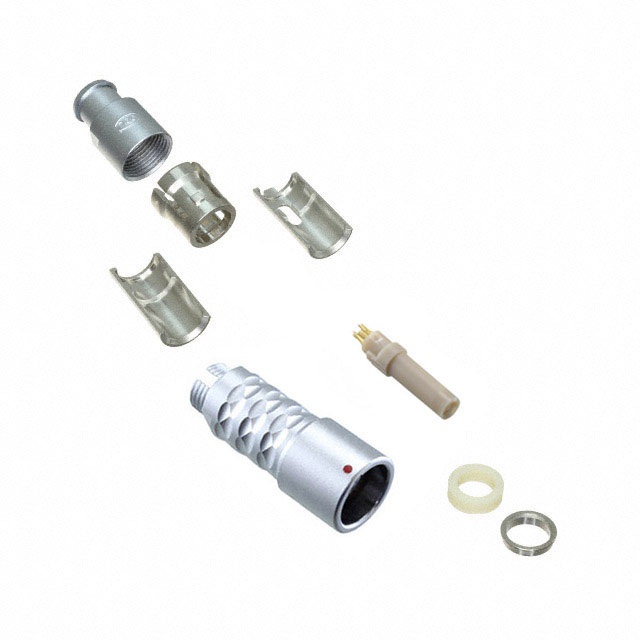

K20K0C-P03LJG0-400S

Active

ODU

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB Datasheet

K20K0C-P03LJG0-400S

Active

ODU

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K20K0C-P03LJG0-400S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.157 in
Cable Opening [Max] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.138 in
Cable Opening [Min] [diameter]	3.5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

K20K0C-P Series

Part	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Finish	Primary Material	Fastening Type	Contact Material	Mounting Type	Contact Finish - Mating	Features	Backshell Material, Plating	Current Rating (Amps)	Color	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Applications	Ingress Protection	Connector Type	Shielding	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]
ODU K20K0C-P02LJG0-300S	Polyetheretherketone (PEEK)	0.118 in	0.098 in	3 mm	2.5 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	7.5 A	Silver	Brass	-40 °C	120 °C	2	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded
ODU K20K0C-P07LCC0-250S	Polyetheretherketone (PEEK)					Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	7	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded	0.098 in	2 mm	0.079 in	2.5 mm
ODU K20K0C-P07LCC0-350S	Polyetheretherketone (PEEK)	0.138 in	0.118 in		3 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	7	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets						3.5 mm
ODU K20K0C-P07LCC0-300S	Polyetheretherketone (PEEK)	0.118 in	0.098 in	3 mm	2.5 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	7	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded
ODU K20K0C-P05LFG0-300S	Polyetheretherketone (PEEK)	0.118 in	0.098 in	3 mm	2.5 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	7.5 A	Silver	Brass	-40 °C	120 °C		Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded
ODU K20K0C-P06LCC0-250S	Polyetheretherketone (PEEK)					Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	6	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded	0.098 in	2 mm	0.079 in	2.5 mm
ODU K20K0C-P07LCC0-450S	Polyetheretherketone (PEEK)					Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	7	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets		0.177 in	4 mm	0.157 in			4.5 mm
ODU K20K0C-P06LCC0-350S	Polyetheretherketone (PEEK)	0.138 in	0.118 in		3 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	6	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded					3.5 mm
ODU K20K0C-P09LCC0-200S	Polyetheretherketone (PEEK)					Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	4 A	Silver	Brass	-40 °C	120 °C	9	Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Shielded	0.079 in	1.5 mm	0.059 in			2 mm
ODU K20K0C-P03LJG0-400S	Polyetheretherketone (PEEK)	0.157 in	0.138 in		3.5 mm	Chrome over Nickel	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Gold	Backshell Strain Relief	Brass Chrome over Nickel	7.5 A	Silver	Brass	-40 °C	120 °C		Industrial Medical Military Testing Equipment & Measurement	IP68 - Dust Tight Waterproof	Receptacle Female Sockets						4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.67
		10	$ 40.02
		25	$ 36.32
		50	$ 33.83
		100	$ 31.57
		250	$ 28.91

Description

General part information

K20K0C-P Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

ODU MINI-SNAP L, K, B Assembly Instruction GB

Datasheet
