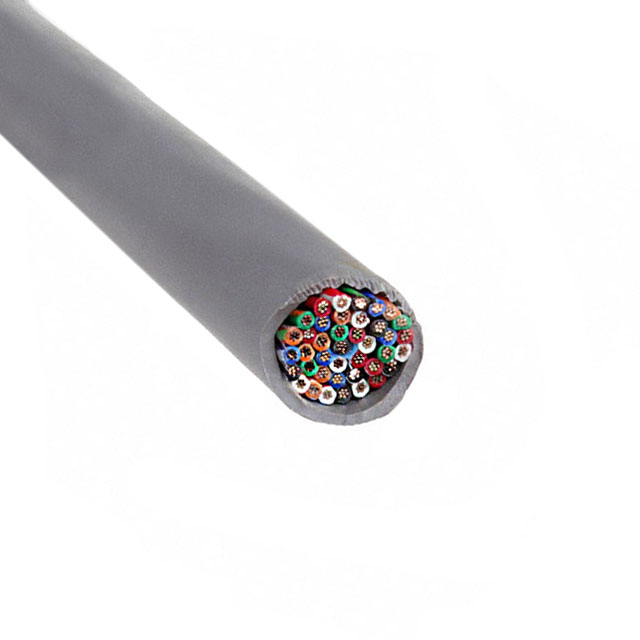

M13340 SL005

Active

ALPHA WIRE

CABLE 40COND 22AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 40COND 22AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13340 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	11.3 mm
Jacket (Insulation) Diameter [diameter]	0.445 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Length	Length
ALPHA WIRE M13340 SL005	Slate	28	7	22 AWG	30.5 m	100 ft	0.04 in	1.016 mm	UL Style 2576	40	Copper Tinned	-20 C	80 C	Multi-Conductor	300 V	11.3 mm	0.445 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
ALPHA WIRE M13340 SL001	Slate	28	7	22 AWG			0.04 in	1.016 mm	UL Style 2576	40	Copper Tinned	-20 C	80 C	Multi-Conductor	300 V	11.3 mm	0.445 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 592.60

General part information

40 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
