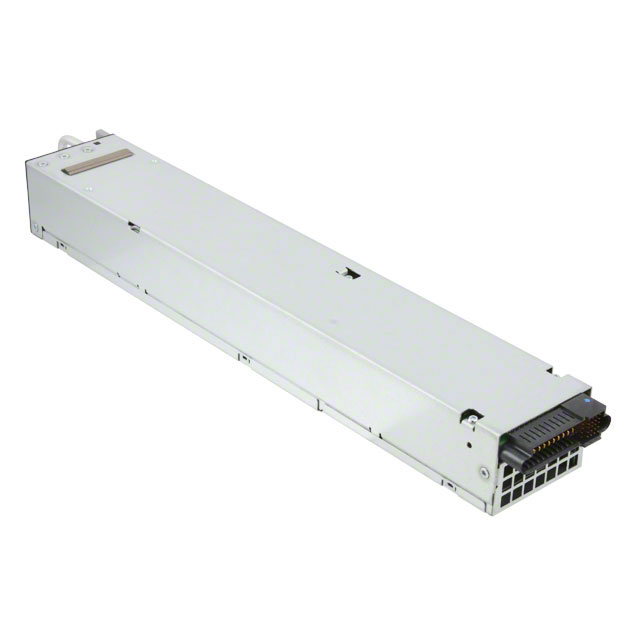

PFE600-12-054NA

Active

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 1 O/P, 12V, 50A

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 1 O/P, 12V, 50A

Technical Specifications

Parameters and characteristics for this part

Specification	PFE600-12-054NA

Applications	ITE (Commercial)
Approval Agency	CE, NEMKO
Current - Output 1	50 A
Current - Output 2	3.3 A
Efficiency	94 %
Features	PMBus™, Universal Input, Load Sharing, I2C Interface, Hot Swappable, Standby Output, Adjustable Output
Mounting Type	Rack Mount
Number of Outputs	2
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Power (Watts)	600 W
Size / Dimension [x]	14.17 in
Size / Dimension [x]	360 mm
Size / Dimension [y]	2.15 "
Size / Dimension [y]	54.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	62368-1
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V
Voltage - Output 2	5 V

Part	Current - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Features	Approval Agency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	Number of Outputs	Applications	Mounting Type	Type	Efficiency	Power (Watts)	Standard Number
EOS Power India Private Ltd PFE600-12-054NA	50 A	2.15 "	54.5 mm	1.57 "	14.17 in	40 mm	360 mm	0 °C	65 °C	3.3 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PMBus™ Standby Output Universal Input	CE NEMKO	12 V	90 VAC	264 VAC	5 V	2	ITE (Commercial)	Rack Mount	Front End	94 %	600 W	62368-1
