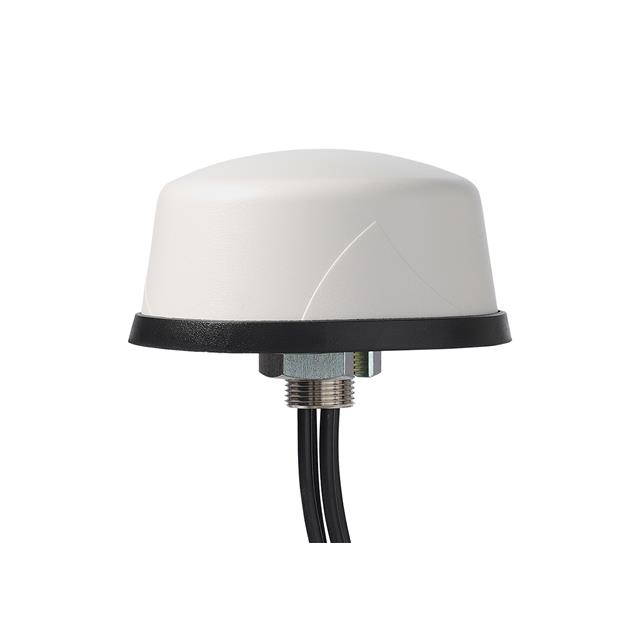

PCTHPMIMO-2-SF
ActiveAmphenol PCTEL
MULTIBAND MIMO COACH PERMANENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCTHPMIMO-2-SF
ActiveAmphenol PCTEL
MULTIBAND MIMO COACH PERMANENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCTHPMIMO-2-SF |
|---|---|
| Antenna Type | Dome |
| Applications | 802.11ac |
| Frequency (Center/Band) | 5.4 GHz, 2.55 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.9 GHz, 2.8 GHz |
| Frequency Range [Min] | 2.3 GHz, 4.9 GHz |
| Gain | 1.5 dBic, 0.5 dBi |
| Height (Max) | 137.16 mm |
| Height (Max) [Max] | 5.4 in |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| Power - Max [Max] | 25 W |
| RF Family/Standard | WiFi |
| Termination | RP-SMA Male |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 94.39 | |
Description
General part information
PCTHPMIMO Series
RF ANTENNA 802.11ac Dome RP-SMA Male Magnetic
Documents
Technical documentation and resources
