1218944

Active

SICK, Inc.

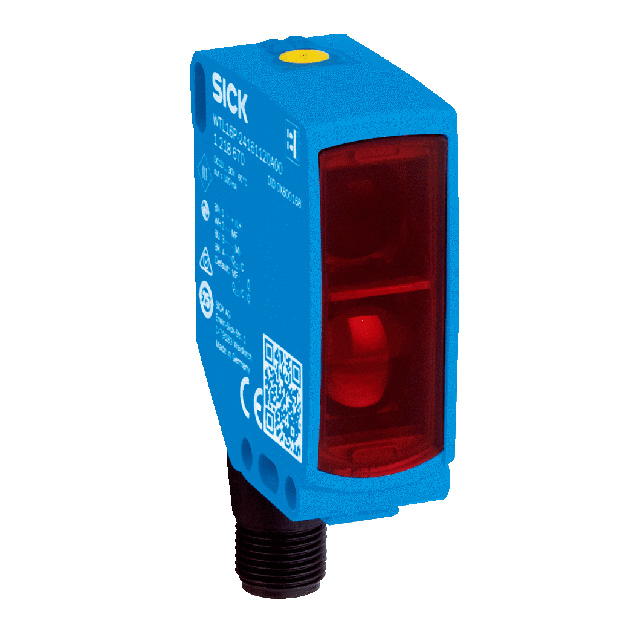

SENSOR PROXIMITY 750MM NPN/PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 750MM NPN/PNP

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Sensing Method	Output Configuration	Light Source	Light Source	Cable Length	Cable Length	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method
SICK, Inc. 1218944	Adjustable	Proximity	NPN/PNP Push-Pull	635 nm	Red	78.74 in	2 m	750 mm	10 mm	29.53 "	0.39 in	-40 °C	60 °C	1.25 ms	IP66 IP67	30 VDC	10 VDC	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 430.51

General part information

Proximity Optical Sensor 0.39" ~ 29.53" (10mm ~ 750mm) Push-Pull, NPN/PNP

Technical documentation and resources
