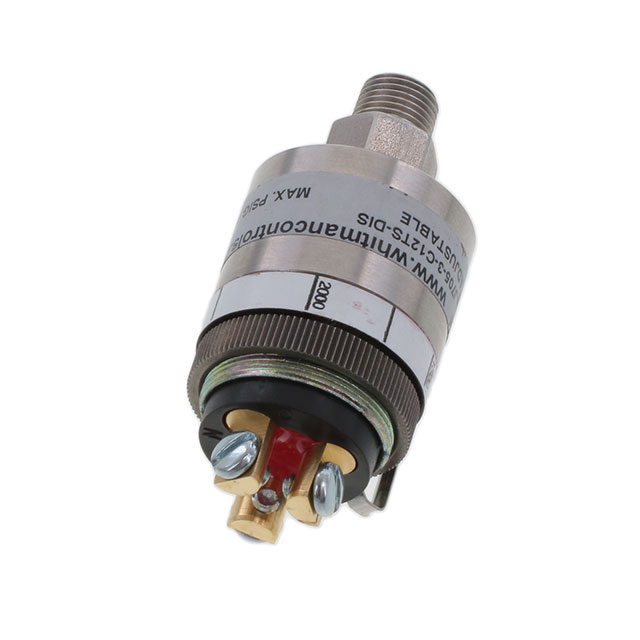

J705-3-C12TS-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 600-5000 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 600-5000 PSIG

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style	Port Size	Port Size	Port Size	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Output Type	Accuracy	Accuracy
Whitman Controls, LLC J705-3-C12L-DIS	-54 °C	107 °C	Cylinder Threaded	Wire Leads	0.125 "	3.18 mm	Male	3447.38 kPa	20684.27 kPa	3000 PSI	500 PSI	Switch	20684.27 kPa	3000 PSI	Threaded	SPDT	1034.21 kPa	150 PSI
Whitman Controls, LLC J705-3-C12TS-DIS	-54 °C	107 °C	Cylinder Threaded	Screw Terminal	0.125 "	3.18 mm	Male	3447.38 kPa	20684.27 kPa	3000 PSI	500 PSI	Switch	20684.27 kPa	3000 PSI	Threaded	SPDT	1034.21 kPa	150 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 186.41

General part information

PRESSURE SWITCH 600-5000 PSIG

Technical documentation and resources

No documents available
