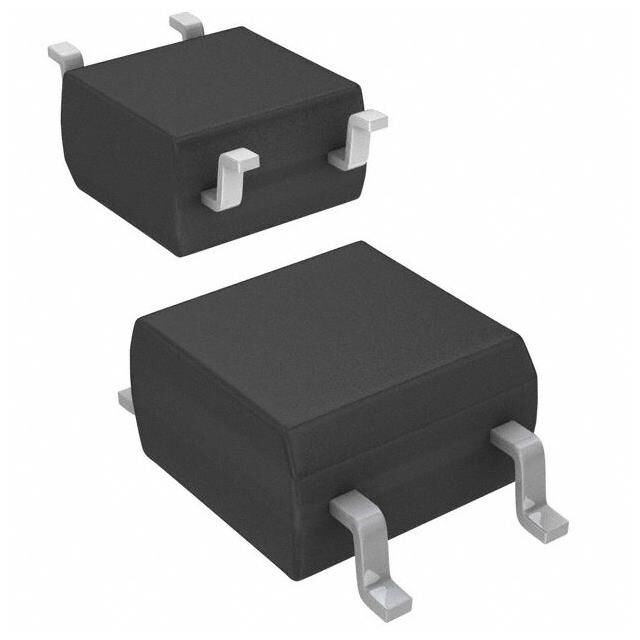

TLP172GAM(E

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 120MA 0-400V

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 120MA 0-400V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	On-State Resistance (Max) [Max]	Supplier Device Package	Approval Agency	Package / Case	Package / Case	Package / Case	Output Type	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input
Toshiba Semiconductor and Storage TLP172GAM(E	Surface Mount	110 mA	-40 °C	110 °C	65 Ohms	6-SOP	cUR UR VDE	0.173 in 4 Lead	6-SOIC	4.4 mm	DC	Gull Wing
Toshiba Semiconductor and Storage TLP172G(TP,F)	Surface Mount	110 mA	-40 °C	85 °C	35 Ohm	4-SOP	cUL UL VDE		4-SMD Gull Wing		AC DC	Gull Wing	350 V	0 V	1.15 VDC
Toshiba Semiconductor and Storage TLP172G(F)	Surface Mount	110 mA	-40 °C	85 °C	35 Ohm	4-SOP	cUL UL VDE		4-SMD Gull Wing		AC DC	Gull Wing	350 V	0 V	1.15 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) 6-SOIC (0.173", 4.40mm Width), 4 Leads

Technical documentation and resources
