S10L0C-P07MCC0-4200

Active

ODU

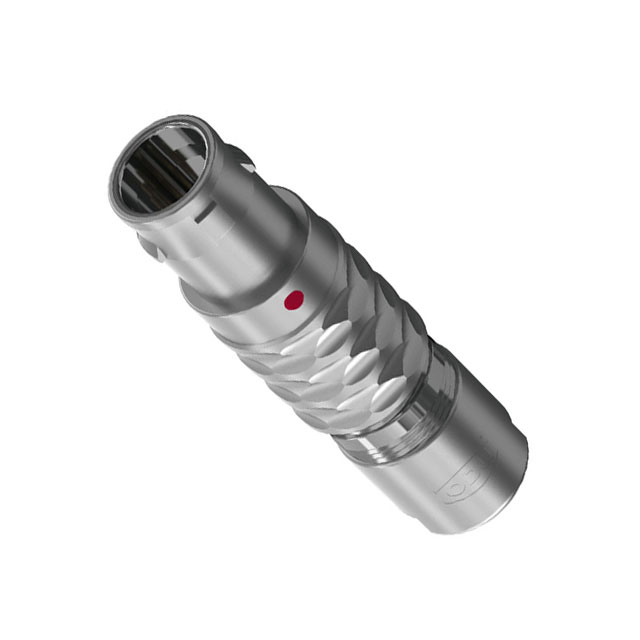

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP® L,K,B Series Catalog ODU MINI-SNAP L, K, B Assembly Instruction GB +1

S10L0C-P07MCC0-4200

Active

ODU

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP® L,K,B Series Catalog ODU MINI-SNAP L, K, B Assembly Instruction GB +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S10L0C-P07MCC0-4200

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

S10L0C-P Series

Part	Features	Termination	Primary Material	Mounting Type	Contact Finish - Mating	Shell Material	Connector Type	Applications	Contact Material	Voltage Rating	Number of Positions	Fastening Type	Backshell Material, Plating	Current Rating (Amps)	Shielding	Color	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
ODU S10L0C-P02NJH0-2200	Backshell	Crimp	Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	366 V	2	Push-Pull	Brass Chrome over Nickel	10 A	Unshielded	Silver	IP50	0.059 in 0.087 in	1.5 mm 2.2 mm	Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C
ODU S10L0C-P07LCC0-5600	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	300 VDC	7	Push-Pull	Brass Chrome over Nickel	4 A	Unshielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C	0.197 in	5 mm	0.22 in	5.6 mm
ODU S10L0C-P02PJG0-3200	Backshell	Crimp	Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	500 V	2	Push-Pull	Brass Chrome over Nickel	7.5 A	Unshielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C					3.2 mm	0.126 in	0.079 in	2 mm
ODU S10L0C-P04MFG0-4200	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass		4	Push-Pull	Brass Chrome over Nickel	7.5 A	Shielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C
ODU S10L0C-P07MCC0-4200	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass		7	Push-Pull	Brass Chrome over Nickel	4 A		Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C
ODU S10L0C-P03NJH0-5200	Backshell	Crimp	Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	200 V		Push-Pull	Brass Chrome over Nickel	10 A	Unshielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C	0.157 in	4 mm	0.205 in	5.2 mm
ODU S10L0C-P09MCC0-2200	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass		9	Push-Pull	Brass Chrome over Nickel	4 A	Shielded	Silver	IP50	0.059 in 0.087 in	1.5 mm 2.2 mm	Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C
ODU S10L0C-P05MFD0-5200	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	366 V		Push-Pull	Brass Chrome over Nickel	6 A	Unshielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C	0.157 in	4 mm	0.205 in	5.2 mm
ODU S10L0C-P10BMM9-5600	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass	200 V	10	Push-Pull	Brass Chrome over Nickel	5 A	Unshielded	Silver	IP50			Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C	0.197 in	5 mm	0.22 in	5.6 mm
ODU S10L0C-P05MFG0-2200	Backshell		Metal	Free Hanging (In-Line)	Gold	Brass	Male Pins Plug	Industrial Medical Military Testing Equipment & Measurement	Brass			Push-Pull	Brass Chrome over Nickel	7.5 A	Shielded	Silver	IP50	0.059 in 0.087 in	1.5 mm 2.2 mm	Chrome over Nickel	Polyetheretherketone (PEEK)	-40 °C	120 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.93
		10	$ 23.73

Description

General part information

S10L0C-P Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

ODU MINI-SNAP® L,K,B Series Catalog

Datasheet

ODU MINI-SNAP L, K, B Assembly Instruction GB

Datasheet
