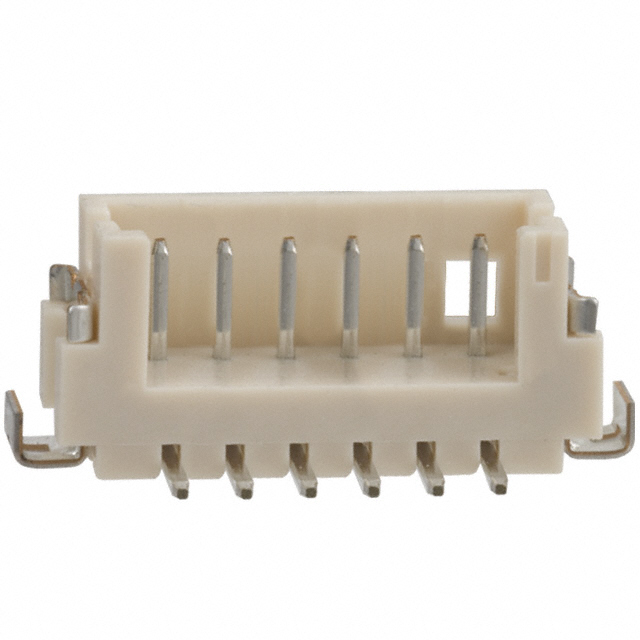

DF13C-6P-1.25V(75)

LTB

Hirose Electric USA, Inc.

CONN HEADER SMD 6POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF13C-6P-1.25V(75)

LTB

Hirose Electric USA, Inc.

CONN HEADER SMD 6POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13C-6P-1.25V(75)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13C Series

Part	Shrouding	Material Flammability Rating	Number of Rows	Features	Connector Type	Number of Positions Loaded	Style	Number of Positions	Mated Stacking Heights	Contact Type	Fastening Type	Mounting Type	Insulation Material	Insulation Height	Insulation Height	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Shape	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF13C-14P-1.25V(50)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	14	5.8 mm	Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	0.203 Ám	8 Áin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square	Gold
Hirose Electric USA, Inc. DF13C-8P-1.25V(77)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	8		Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VAC			Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square	Gold	Gold
Hirose Electric USA, Inc. DF13C-7P-1.25V(50)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	7	5.8 mm	Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	0.203 Ám	8 Áin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square	Gold
Hirose Electric USA, Inc. DF13C-6P-1.25V(90)
Hirose Electric USA, Inc. DF13C-9P-1.25V(21)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	9	5.8 mm	Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	1 µm	39.4 µin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square		Tin
Hirose Electric USA, Inc. DF13C-8P-1.25V(90)
Hirose Electric USA, Inc. DF13C-14P-1.25V(90)
Hirose Electric USA, Inc. DF13C-9P-1.25V(51)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	9	5.8 mm	Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	0.203 Ám	8 Áin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square	Gold
Hirose Electric USA, Inc. DF13C-11P-1.25V(50)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	11	5.8 mm	Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	0.203 Ám	8 Áin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square	Gold
Hirose Electric USA, Inc. DF13C-6P-1.25V(75)	Shrouded - 3 Wall	UL94 V-0	1	Solder Retention	Header	All	Board to Cable/Wire	6		Male Pin	Detent Lock	Surface Mount	Nylon Polyamide (PA)	4.8 mm	0.189 in	150 VDC	1 µm	39.4 µin	Solder	1.25 mm	0.049 in	Beige	-35 °C	85 °C	Brass	Square		Tin	1 çm	39.4 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.66
		10	$ 0.50
		100	$ 0.38

Description

General part information

DF13C Series

Connector Header Surface Mount 6 position 0.049" (1.25mm)
