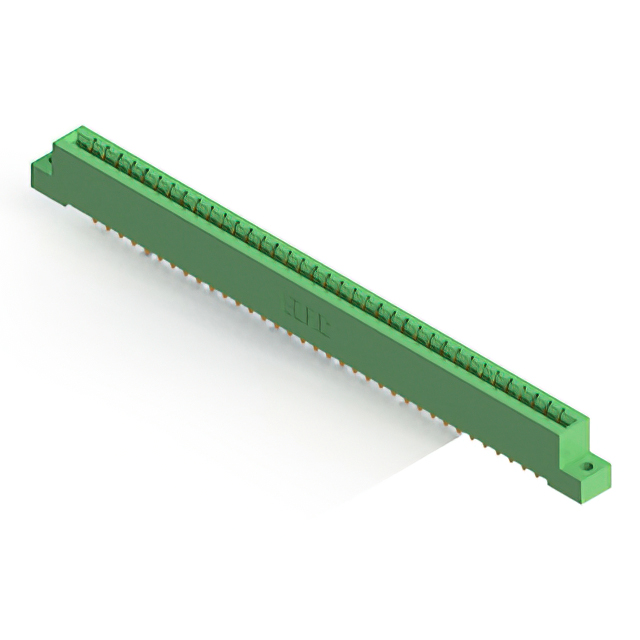

333-037-500-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-037-500-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-037-500-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
333-037 Series
| Part | Flange Feature | Termination | Material - Insulation | Pitch [x] | Pitch [x] | Number of Rows | Read Out | Gender | Color | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Mounting Type | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Wire Wrap | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | ||
EDAC Inc. | Top Mount Opening Unthreaded | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | 0.156 in | 3.96 mm |
EDAC Inc. | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | 0.128 " | 3.25 mm |
EDAC Inc. | Top Mount Opening Unthreaded | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | 0.156 in | 3.96 mm |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole Right Angle | Copper Alloy | ||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | 0.128 " | 3.25 mm |
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | ||
EDAC Inc. | Floating Bobbin Top Mount Opening | Wire Wrap | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1 | Single | Female | Green | 37 | 37 | 37 | Gold | -40 °C | 105 ░C | Cantilever | 1 | 10 Áin | 0.25 Ám | 37 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Copper Alloy | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 24.61 | |
Description
General part information
333-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
