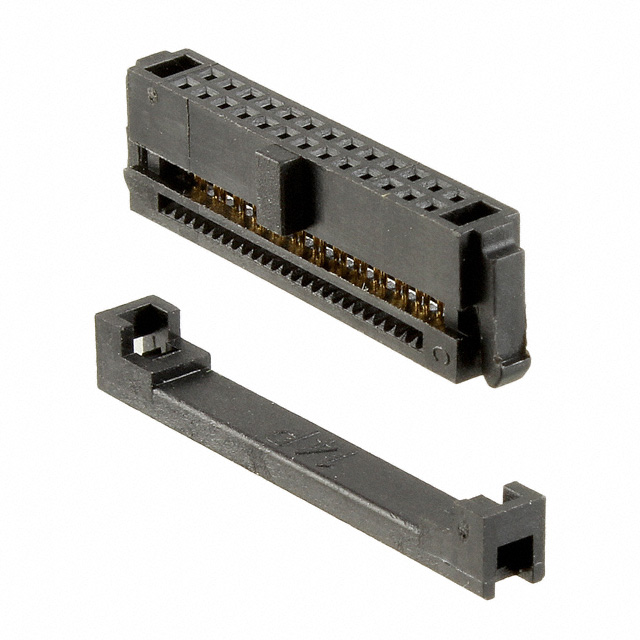

3230-26-0103-00

Active

CnC Tech, LLC

CONN SOCKET 26POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 26POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3230-26-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Type	Ribbon Cable

Part	Contact Type	Cable Termination	Features	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Wire Type	Row Spacing	Row Spacing	Number of Rows	Contact Finish Thickness
CnC Tech, LLC 3230-26-0103-00	Female Socket	IDC	Feed Through Polarizing Key Strain Relief	Socket	26	0.05 in	1.27 mm	Free Hanging (In-Line)	Gold	Ribbon Cable	1.27 mm	0.05 in	2	Flash
CnC Tech, LLC 3230-26-0104-00	Female Socket	IDC	Feed Through Strain Relief	Socket	26	0.05 in	1.27 mm	Free Hanging (In-Line)	Gold	Ribbon Cable	1.27 mm	0.05 in	2	Flash
CnC Tech, LLC 3230-26-0102-00	Female Socket	IDC	Feed Through Polarizing Key	Socket	26	0.05 in	1.27 mm	Free Hanging (In-Line)	Gold	Ribbon Cable	1.27 mm	0.05 in	2	Flash
CnC Tech, LLC 3230-26-0101-00	Female Socket	IDC	Feed Through	Socket	26	0.05 in	1.27 mm	Free Hanging (In-Line)	Gold	Ribbon Cable	1.27 mm	0.05 in	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Socket Connector IDC Gold
