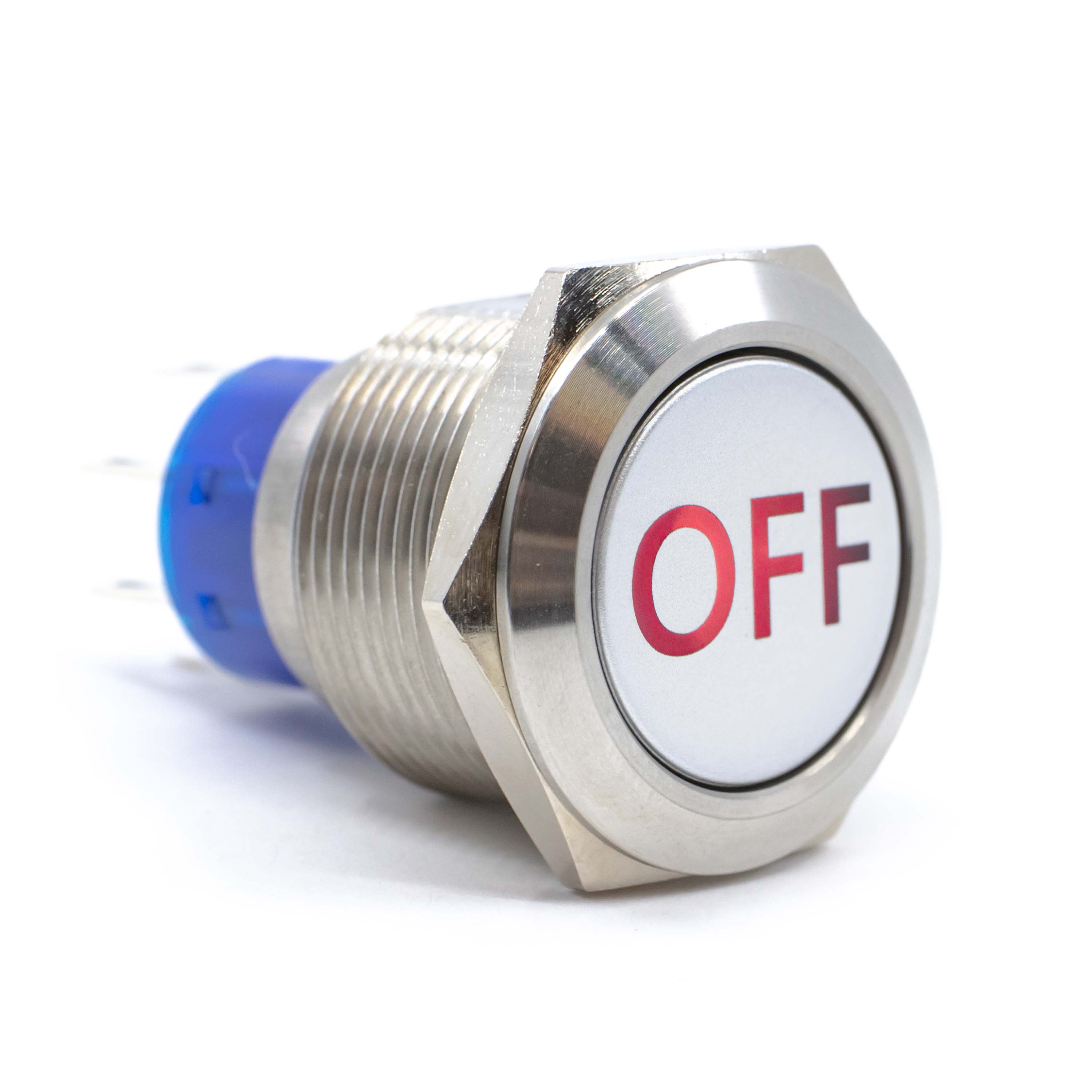

ULV7F2HSLL16L21

Active

E-Switch

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ULV7F2HSLL16L21

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

ULV7 Series

Part	Current Rating (Amps)	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Mechanical Life	Electrical Life	Voltage Rating - AC	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mounting Type	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Actuator Marking	Type	Switch Function
E-Switch ULV7F2H11341	3 A	3 VDC	22.2 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	250 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Black	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Blue LED	No Marking	Anti-Vandal Illuminated	On-Mom
E-Switch ULV7F2BSS351	3 A	3 VDC	22 mm	SPDT	Button Flush Round	500000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	LED Yellow		Anti-Vandal Illuminated	On-Mom
E-Switch ULV7F2G11331	3 A	3 VDC	22 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Black	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Green LED		Anti-Vandal Illuminated	On-On
E-Switch ULV7F2HSLL16L21	3 A		22 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	LED Red	No Marking	Anti-Vandal Illuminated	On-Mom
E-Switch ULV7F2HSLL37L22	3 A	220 VAC/DC	22 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Green LED	No Marking	Anti-Vandal Illuminated	On-Mom
E-Switch ULV7F2GSS341	3 A	3 VDC	22.2 mm	DPDT	Button Flush Round	500000 Cycles	50000 Cycles	250 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Blue LED	No Marking	Anti-Vandal Illuminated	On-On
E-Switch ULV7F23SS645	3 A	24 V	22.2 mm	SPDT	Button Flush Round	500000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Blue LED	No Marking	Anti-Vandal Illuminated	On-On
E-Switch ULV7F2311336	3 A		22 mm	SPDT	Button Flush Round	1000000 Cycles	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Black	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Green LED		Anti-Vandal Illuminated	On-On
E-Switch ULV7F2HSS341	3 A	3 VDC	22.2 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	250 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	Blue LED	No Marking	Anti-Vandal Illuminated	On-Mom
E-Switch ULV7FWHSS341	3 A	3 VDC	22.2 mm	DPDT	Button Flush Round	1000000 Cycles	50000 Cycles	250 V	IP67 - Dust Tight Waterproof	55 °C	-20 C	Silver	Panel Mount Front		Wire Leads		Blue LED	No Marking	Anti-Vandal Illuminated	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.76
		20	$ 10.54
		40	$ 10.20

Description

General part information

ULV7 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
