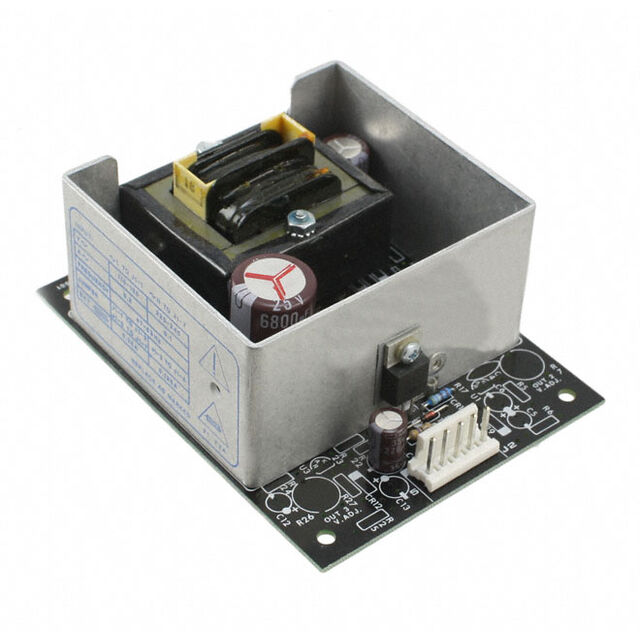

MLL15-0.2-A

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER +/-15V 6W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER +/-15V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	MLL15-0.2-A

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	200 mA
Current - Output 2	200 mA
Efficiency	55 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	6 W
Size / Dimension [x]	108 mm
Size / Dimension [x]	4.25 "
Size / Dimension [y]	82.6 mm
Size / Dimension [y]	82.55 mm
Size / Dimension [z]	43.2 mm
Size / Dimension [z]	1.7 "
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

Part	Approval Agency	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Output 1	Current - Output 2	Voltage - Output 2	Mounting Type
SL POWER / Advanced Energy MLL15-0.2-A	CE cURus TUV	6 W	Linear	43.2 mm	82.6 mm	108 mm	82.55 mm	1.7 "	4.25 "	Adjustable Output Remote Sense Universal Input	Medical	70 °C	0 °C	200 mA	2	240 VAC	100 VAC	55 %	15 V	200 mA	-15 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear AC DC Converters 2 Output 15V -15V 100 ~ 240 VAC Input
